Aluminum Stacking Doors Manufacturer China Factory Price Multi-Panel Low-E

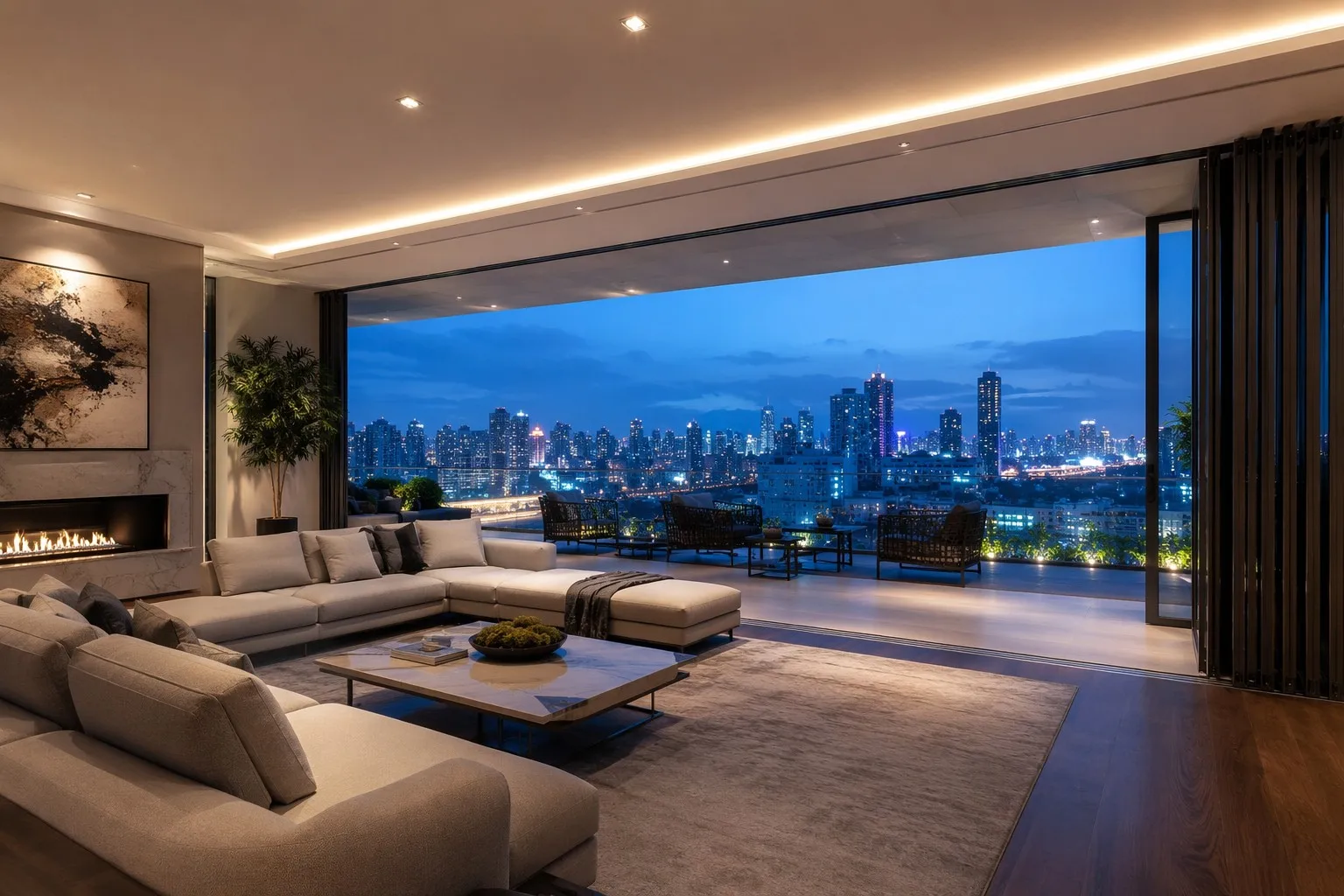

In the contemporary architectural landscape, the boundary between interior sanctuaries and the expansive outdoors has become increasingly fluid. The “Inside-Out” design philosophy, which seeks to integrate natural vistas with living spaces, has catalyzed the evolution of high-performance fenestration systems. Among these, the Aluminum Stacking Door (also known as the Multi-Panel Telescoping Door) stands as the pinnacle of kinetic engineering. Unlike traditional sliding doors that are limited by a two-track configuration, stacking systems allow for massive clear openings, often exceeding 12 meters in width, by nesting multiple panels onto separate parallel tracks. As a leading Aluminum Stacking Doors Manufacturer China, Richocean specializes in the structural and thermal optimization of these systems, ensuring that large-scale glass walls deliver both aesthetic grandeur and rigorous industrial performance.

1. Core Technical Analysis: Material Science of 6063-T6 Extrusions

The structural integrity of a multi-panel door system begins at the molecular level of its aluminum framework. At our Foshan Stacking Door Factory, we exclusively utilize 6063-T6 aluminum alloy. This specific grade is a magnesium-silicon alloy, where the T6 designation signifies a solution heat treatment followed by artificial aging. This process maximizes the yield strength and hardness of the material, which is critical for supporting the enormous dead load of double or triple-glazed units in panels that can reach heights of up to 4,500mm.

From a technical standpoint, the 6063-T6 alloy provides a superior strength-to-weight ratio compared to 6061 or other architectural alloys. Our profile wall thickness ranges from 2.0mm to 3.5mm, depending on the span and wind load requirements. In coastal or high-altitude environments, the moment of inertia (Ix and Iy) for the interlocking stiles is calculated to resist deflection under extreme positive and negative pressure. Furthermore, the surface is treated with PVDF (Polyvinylidene Fluoride) or advanced powder coatings, providing a finish that resists UV degradation, salt spray corrosion, and chemical abrasion for a period exceeding 25 years.

2. The Multi-Track Nesting Mechanism: Precision Engineering of Telescoping Panels

The defining feature of a Telescoping Door Manufacturer is the ability to engineer a multi-track sill that manages both panel movement and water drainage. Traditional sliding doors use one or two tracks, but Richocean’s stacking systems utilize 3-track, 4-track, and even 5-track configurations. This Multi-Track Nesting capability allows four or five panels to slide behind a single fixed panel, or into a wall pocket, effectively opening up 80% to 100% of the wall space.

The mechanical interaction between panels is facilitated by a sequence of interlocking stiles and specialized catchers. When the leading panel is pulled, a series of concealed hooks engage the adjacent panels, dragging them along the track in a synchronized telescoping motion. This requires micron-level precision in the extrusion of the track profile and the alignment of the SS316 Stainless Steel Rollers. Any deviation in the track’s levelness or the roller’s concentricity would result in increased friction, noise, and eventual component failure. Our heavy-duty rollers are rated for 300kg per panel, featuring double-sealed bearings and a self-lubricating polymer housing to ensure a whisper-quiet glide over 100,000 cycles.

3. Thermal Barrier Technology: PA66GF25 and Low-E Glazing Efficiency

Large glass surfaces are often the weakest point in a building’s thermal envelope. To mitigate heat gain in summer and heat loss in winter, our Multi-Panel Low-E systems employ a two-pronged strategy: structural thermal breaks and advanced glazing.

The aluminum profiles are bisected by PA66GF25 Polyamide Strips. This material is a composite of Polyamide 66 reinforced with 25% glass fiber. It possesses a thermal expansion coefficient similar to aluminum, ensuring that the structural integrity of the composite profile remains intact during extreme temperature fluctuations. This thermal break prevents thermal bridging, significantly reducing the U-factor of the frame. Coupled with this is our Low-E (Low Emissivity) Insulated Glass. The glass surface is treated with a microscopically thin coating of silver that reflects long-wave infrared energy while allowing visible light to pass through. By utilizing argon-filled dual-pane or triple-pane units with warm-edge spacers, we can achieve a Solar Heat Gain Coefficient (SHGC) as low as 0.25 and a U-value that meets the most stringent international energy codes.

4. Performance Specifications and Industrial Standards

Our Aluminum Stacking Doors undergo rigorous testing to ensure compliance with global B2B standards, including ASTM and Australian AS2047 protocols. The following table summarizes the typical performance benchmarks for our flagship stacking series:

Additionally, our Anti-Sway Guide Rail system is a proprietary innovation. In multi-panel configurations, wind pressure can cause panels to rattle or sway within the track. Our guide system uses a secondary vertical constraint that stabilizes the panel at its highest and lowest points, preventing mechanical fatigue and ensuring that the air and water seals remain engaged even during high-velocity wind events.

5. Technical FAQ: Solving Complex Architectural Challenges

Q: What is the maximum opening width for a multi-panel stacking system?
A: While there is no theoretical limit, practical constraints include track extrusion lengths and shipping limits. Richocean can manufacture systems up to 15 meters in width with 10 panels (5 stacking each way). For larger spans, we integrate structural steel reinforcement within the aluminum mullions to manage the increased dead load and deflection.

Q: Can the tracks be recessed for a barrier-free floor?
A: Yes. We offer a Zero-Threshold Flush Track design. This involves a recessed sub-sill with an integrated drainage channel. The system is designed to meet ADA requirements for accessibility while maintaining a high water-tightness rating through a series of internal baffle plates and weep holes.

Q: How do you manage the weight of massive panels?
A: We utilize a bottom-rolling configuration rather than top-hung. In a bottom-rolling system, the weight is transferred directly to the floor slab, which is structurally more stable for heavy glass. We pair this with double-tandem rollers and heavy-duty corner cleats to prevent panel dropping or misalignment over time.

6. China Stacking Door Market Ranking and The Richocean Advantage

In the competitive manufacturing landscape of Southern China, specifically the Foshan-Guangdong industrial cluster, Richocean has secured the Number 1 position for high-specification architectural glass systems. Our dominance is not merely a matter of scale, but of vertical integration. Unlike assembly-only factories, Richocean controls the entire supply chain – from aluminum billet casting and precision extrusion to glass tempering and hardware metallurgy.

This allows us to offer a Stacking Door Price that is 30-40% lower than European or North American counterparts without compromising on the technical specification. We are the preferred supplier for developers who require high-volume, project-specific engineering.

7. Real-World Engineering Cases: Performance in Practice

For a luxury resort in Koh Samui, Thailand, we installed a 12-meter wide, 5-panel stacking system for an open-air beachfront restaurant. The challenge was two-fold: extreme salt-air corrosion and the need for a hurricane-rated system. We utilized marine-grade SS316 hardware and a 60-micron PVDF finish. The result is a panoramic opening that has withstood three monsoon seasons without a single instance of mechanical binding or finish degradation.

In a high-rise condominium in Vancouver, Canada, the priority was thermal performance and acoustic isolation. We supplied triple-glazed, Low-E stacking doors with a specialized 35mm thermal break. The system successfully passed the local Step 4 Energy Code, providing the residents with an expansive balcony entrance that remains warm to the touch during Canadian winters while blocking 40dB of city traffic noise.

8. B2B Pricing Analysis: Factors Affecting the Factory Quote

When requesting a Factory Price for Aluminum Stacking Doors, it is important to understand the variables that influence the B2B quote. Pricing is not calculated on a simple per-square-meter basis; it is a function of complexity. Key factors include:

• Number of Tracks: A 4-track system requires significantly more aluminum mass in the sill and head track than a 2-track system.
• Glass Specification: The jump from standard double-glazing to Low-E or Triple-Glazing adds material cost but provides a higher ROI in energy savings.
• Hardware Grade: While we offer standard rollers, the upgrade to heavy-duty tandem SS316 rollers is recommended for panels exceeding 150kg.
• Customization: Integrated fly-screens (pleated or stainless mesh) and automated magnetic motor drives for smart-home integration will impact the final unit price.

Richocean provides transparent, factory-direct pricing. By eliminating the middleman and shipping directly from our Foshan facility, we provide high-end architectural solutions that fit within commercial development budgets.

9. 360-Degree Service and The Founder’s Vision

At the heart of Richocean’s success is a commitment to “Technical Truth.” Our founder, an engineer with 30 years of experience in aluminum metallurgy, established the company on the principle that a door is more than a partition; it is a kinetic machine that must work perfectly every time it is touched. This philosophy drives our 360-degree service model, which includes pre-sale structural consulting, CAD/BIM shop drawings, and on-site installation supervision for large-scale developments.

We invite architects, developers, and facade consultants to visit our Aluminum Stacking Doors Manufacturer China facility. Experience the precision of our automated CNC machining centers and the rigor of our test chambers. At Richocean, we do not just build doors; we create the portals to a more expansive, more connected way of living. Contact our technical team today for a comprehensive feasibility study and a factory-direct B2B quote for your next landmark project.
