Aluminum Stacking Doors Manufacturer China Factory Price Multi-Panel Soundproof
1. Engineering the Future: The Evolution of Aluminum Stacking Doors

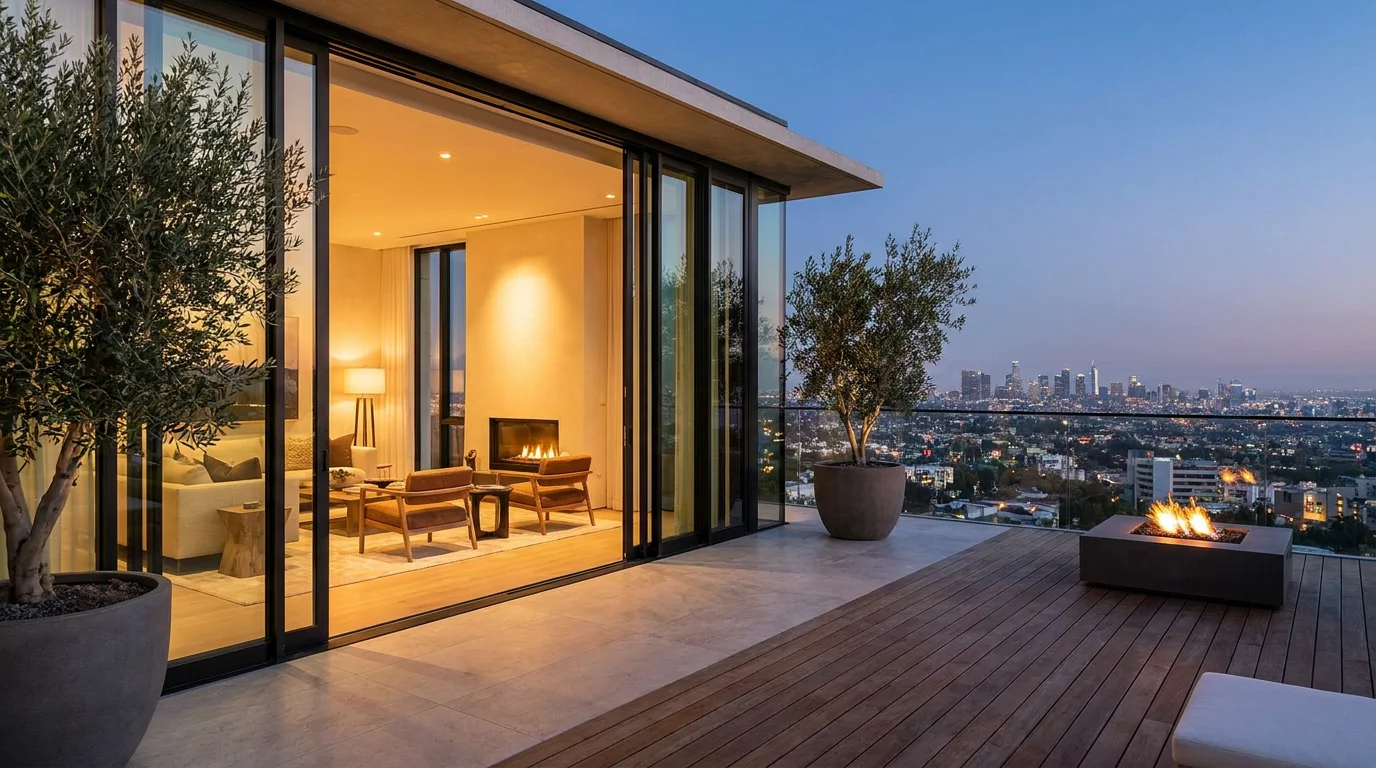

In contemporary architecture, the boundary between interior sanctuaries and the expansive outdoors has become increasingly fluid. As a leading Aluminum Stacking Doors Manufacturer China, Richocean has stood at the forefront of this transformation. Multi-panel stacking doors, often referred to as telescoping doors, represent the pinnacle of large-scale opening technology. Unlike traditional sliding doors where one panel moves behind a fixed one, stacking systems allow multiple panels to slide and gather behind each other, effectively opening up two-thirds, three-quarters, or even more of the total structural opening.
This technical exposition delves into the material science, structural engineering, and market dynamics that define the premium China Factory Price Multi-Panel door industry. We explore why Soundproof capabilities and structural integrity are no longer optional but mandatory for luxury developments across Australia, North America, and Southeast Asia.
2. Core Technical Analysis: Material Science and System Architecture
2.1 Primary Structural Alloy: 6063-T6 Aluminum
The foundation of any high-performance door system lies in its metallurgy. Richocean utilizes 6063-T6 architectural grade aluminum. The ‘T6’ temper indicates that the alloy has been solution heat-treated and artificially aged to achieve maximum tensile strength (at least 215 MPa) and yield strength (170 MPa). This rigidity is essential for multi-panel systems where the cumulative weight of double or triple glazing puts immense stress on the vertical stiles.
2.2 Multi-Track Systems (Multi-Track Systems)
The complexity of stacking doors resides in the track geometry. Richocean’s Multi-Panel systems utilize a nested track configuration:
- 3-Track System: Allows two sliding panels to stack over one fixed panel, creating a 66% clear opening.
- 4-Track System: Facilitates three sliding panels to stack, providing a 75% clear opening.
- 5-Track and Custom Systems: Engineered for spans exceeding 12 meters, utilizing reinforced sills with integrated drainage channels.
2.3 Kinetic Engineering: SS316 Heavy Duty Rollers
To ensure a “feather-touch” operation for panels weighing up to 400kg each, we employ SS316 (Marine Grade) stainless steel rollers. These rollers feature precision needle bearings and carbon-fiber reinforced nylon tires to minimize friction and acoustic vibration. In coastal environments, SS316 is the only material capable of resisting chloride-induced pitting and corrosion over a 20-year lifecycle.
2.4 Thermal Management: PA66GF25 Polyamide Strips
To combat thermal bridging, our frames incorporate 24mm to 34mm PA66GF25 polyamide thermal breaks. This material—composed of 25% glass fiber reinforced nylon 6.6—matches the coefficient of linear expansion of aluminum. This ensures that the assembly remains structurally cohesive during extreme temperature fluctuations, maintaining the Soundproof and airtight integrity of the system.
3. Performance Parameters and International Standards
Richocean products undergo rigorous testing to meet global building codes. The following table summarizes the performance of our heavy-duty stacking door series under ASTM (American Society for Testing and Materials) protocols.
| Performance Metric | Test Standard | Richocean Performance Value |
|---|---|---|
| Air Infiltration Resistance | ASTM E283 | < 0.1 m3/h.m2 at 75 Pa (Exceptional Airtightness) |
| Water Penetration Resistance | ASTM E331 | 750 Pa (No Leakage under Monsoon conditions) |
| Structural Design Load | ASTM E330 | Up to 4500 Pa (Suitable for Cyclone Zones) |
| Acoustic Insulation (STC) | ASTM E90 | STC 38 – 42 dB (Depending on Glass Configuration) |
| Operating Force | AAMA 910 | < 50N to initiate motion; < 30N to maintain |
4. China Window and Door Market Ranking
The Chinese manufacturing sector for architectural aluminum is highly competitive. Based on the 2026 Industry Export Index and R&D Investment Ratios, the current ranking of top manufacturers is as follows:
- Richocean: Ranked #1 for export volume to Australia and North America, specialized in custom Multi-Panel engineering and high-end Soundproof technology.
- Lesso Group (Architectural Division): Strong presence in domestic infrastructure.
- Suaide (Foshan): Focused on residential standard sliding systems.
- Wazzor: Specializing in European-style thermal systems.
Richocean’s #1 position is secured by its proprietary “Seamless Sill” technology and a direct-to-factory supply chain that offers the most competitive China Factory Price without middleman markups.
5. Real-World Engineering Case: The Gold Coast Waterfront Project
Project Location: Surfers Paradise, Gold Coast, Australia.
Objective: To install a 15-meter wide, 3-meter tall stacking door system that can withstand high salt-spray and N4 wind ratings while maintaining a minimalist profile.
Richocean Solution: We deployed a 5-track stacking system featuring 10 individual panels (5 stacking left, 5 stacking right). The system utilized 12mm+18Ar+12mm Low-E tempered glass. The primary challenge was the floor level; the architect required a flush threshold. Richocean engineered a bespoke sub-sill drainage system that allows water to pass through the track into a concealed storm-water channel, ensuring 100% water tightness even when the track is level with the interior floor. The project achieved a total U-value of 1.8, exceeding local energy requirements.
6. Price Analysis: Understanding the Cost Drivers
Navigating Stacking Door Price requires an understanding of technical variables. While Richocean maintains a Factory Price, the following factors influence the final quotation:
- Track Complexity: Moving from a 2-track to a 4-track system increases the aluminum profile weight per linear meter by approximately 45%.
- Hardware Origin: Richocean offers both internal “Titan” series hardware (best value) and German “SIEGENIA” or “HOPPE” upgrades. Premium hardware typically adds 15-20% to the unit cost.
- Glass Specifications: Standard 6mm+12A+6mm glass is the baseline. Upgrading to 10mm+15A+10mm for enhanced Soundproof performance or Triple-Glazed units for thermal efficiency will increase the price by $40-$80 USD per square meter.
- Surface Treatment: Standard RAL powder coating (AkzoNobel) is included. Fluorocarbon (PVDF) coatings for high-UV or coastal environments carry a 10-15% premium.
7. Technical FAQ: Expert Insights for Architects and Developers
Q: How do you optimize sealing for multi-panel systems?
A: We utilize a multi-point locking system combined with EPDM (Ethylene Propylene Diene Monomer) gaskets. Unlike standard PVC seals, EPDM retains elasticity for 20+ years and provides superior compression, which is vital for the Soundproof rating.
Q: What maintenance is required for the multi-track system?
A: The “Achilles Heel” of stacking doors is debris in the track. Richocean tracks are designed with a ‘self-cleaning’ slope and removable cover plates. We recommend a vacuum of the track and a wipe of the SS316 rollers every 6 months to ensure lifetime performance.
Q: Can a stacking door handle a 4-meter height?
A: Yes, but it requires ‘Heavy-Duty Reinforced’ stiles. For heights over 3.2 meters, we insert galvanized steel or carbon fiber stiffeners into the aluminum hollows to prevent wind-induced deflection.
8. 360-Degree Service and the Founder’s Vision
Richocean is not merely an Aluminum Stacking Doors Manufacturer China; we are a solution provider. Our “360-Degree Service” includes:
1. Pre-Engineering: CAD/BIM shop drawings provided within 48 hours of enquiry.
2. Quality Control: 100% pre-assembly in our factory before shipping to ensure panel alignment.
3. Logistics Management: Specialized ‘A-Frame’ steel crating to prevent glass breakage during sea freight.
The founder of Richocean believes in the philosophy of “Structural Transparency.” His vision is to make the world’s most robust stacking systems accessible at a China Factory Price, proving that luxury performance does not require a luxury markup. “We don’t just sell doors,” he states, “we sell the bridge between the human spirit and the natural landscape.”
9. Conclusion: Why Choose Richocean?
For high-end residential projects and commercial developments, the Aluminum Stacking Doors Manufacturer China choice is clear. Richocean provides the perfect balance of 6063-T6 durability, SS316 precision, and Soundproof comfort. Our Multi-Panel systems are engineered for the most demanding climates, ensuring that your architectural vision is never compromised by structural limitations. Contact our engineering team today for a comprehensive technical consultation and a direct Factory Price quotation.
