Aluminum Stacking Doors Manufacturer China Factory Price Multi-Panel Low-E
1. System Overview — The Telescoping Opening
The Aluminum Stacking Door — also known as the multi-panel telescoping door — is the most advanced solution for large-format openings. Unlike a standard slider with one moving lane, stacking systems use two, three, or four parallel tracks, allowing multiple panels to nest compactly at one side and open up to 90 percent of the wall. For oceanfront resorts, penthouse terraces, and commercial restaurants, this is the definitive large-opening system. As a premier manufacturer in China, Richocean engineers these systems with 6063-T6 metallurgy and multi-track precision at factory-direct prices.
2. Core Material Science — 6063-T6 Frame Metallurgy
Each stacking panel is simultaneously a structural element and a moving element. Richocean specifies 6063-T6 aluminum alloy for all frame members.
Profile geometry: internal stiffening ribs, gasket retention channels, and interlocking steps accepting the PA66 thermal break. Dimensional tolerances follow GB/T 5237 and EN 755, with twist and bow limited to fractions of a millimeter over six-meter lengths — allowing multi-track systems to slide freely without binding across a 15-meter opening.
3. Multi-Track Nesting Systems
The defining engineering feature is the track system. Two, three, or four parallel tracks are machined into header and sill, each carrying its own set of panels:
| Track System | Opening Width | Clear Opening |
|---|---|---|
| 2-track | up to ~5m | ~66% |
| 3-track | 6–12m | ~75% |
| 4-track | 12m+ | ~80–90% |
Track parallelism is held to approximately 0.5mm across the full opening width; header and sill are machined as matched sets and shipped as one unit. Panel nesting follows telescoping geometry rules: panel count per track must allow clearance of fixed panels on adjacent tracks.
4. SS316 Heavy Rollers & Anti-Sway Guide
A stacking door lives or dies by its rollers. Richocean specifies SS316 stainless steel for all exposed roller components:
- Roller assembly: hardened inner race, precision ball bearings (ABEC 5), 40–60mm polymer/stainless wheel
- Load rating: 150–250kg per carriage
- Anti-sway guide: top and bottom guides capture the panel edge, distributing lateral wind loads away from rollers — critical for panels above 2.8m
5. PA66 Thermal Break & Low-E Glazing
Richocean integrates PA66GF25 polyamide thermal break strips for energy performance:
- Frame U-value: 2.0–3.2 W/(m²·K) vs 5.5–6.5 for non-broken frames
- System U-value: 1.5–1.8 W/(m²·K) with Low-E IGU
- Low-E coating: reflects long-wave infrared; argon-filled 12–16mm cavity
6. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | 0.1–0.3 cfm/ft², Class A1 |
| Structural Performance | ASTM E330 | up to ±1920 Pa, L/175–L/240 |
| Water Penetration | ASTM E331 | 290 Pa min, 400–600 Pa typhoon spec |
| Acoustic | ASTM E90 | STC 35–42 dB |
7. Technical FAQ
Q: Can these systems handle openings of 15 meters or more?
A: Yes. A 15m opening is routine with a 3–4 track system and 6–10 panels. The header beam carries all panel weight and wind load over the span; Richocean integrates steel-reinforced headers and limits deflection to ~L/500.
Q: What is a flush track, and when should I specify it?
A: A flush track sets the moving surface at finished floor level (0–25mm profile) for wheelchair access. It requires precise floor drainage planning; for storm-prone coastal sites a raised track with deep drainage is often the safer choice.
Q: How does synchronized operation work?
A: A linkage or gear mechanism couples all moving panels to one master panel, so pulling the master moves all panels together. For commercial openings with panels over 3m, synchronized or motorized operation is recommended.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for stacking door export volume. The Foshan factory integrates extrusion, PA66 assembly, glass processing, and hardware under one roof, with 20–35 day lead times for full containers. Factory-direct pricing runs 30–50 percent below Western manufacturing.
9. Illustrative Project Applications
Example A — Oceanfront Resort (Illustrative)
A 16m opening facing the sea: 4-track, 10-panel system with flush track, SS316 hardware, PVDF coating; E330 tested at 1920 Pa with zero permanent deformation; two typhoon seasons with zero hardware replacements. Illustrative example values.

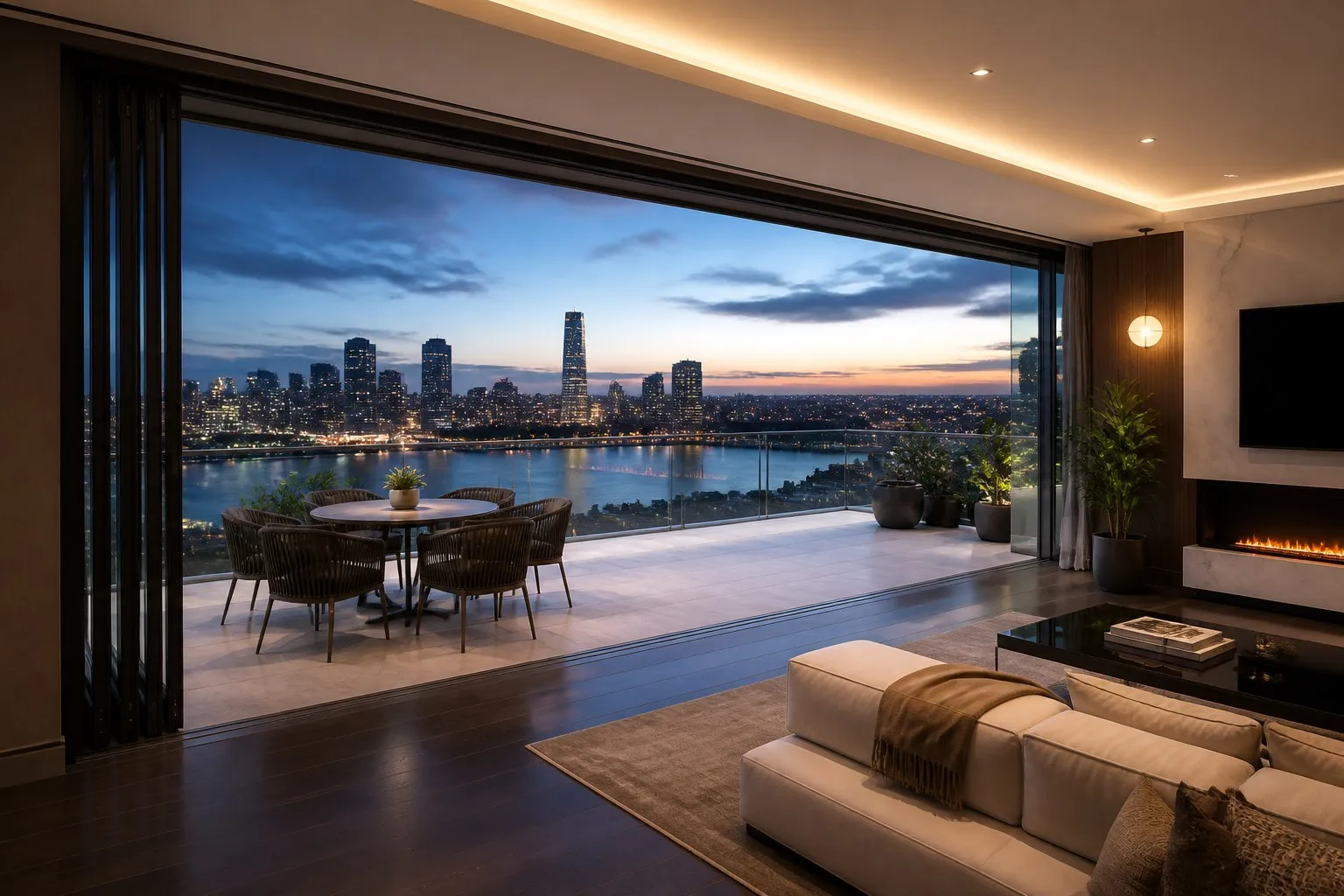

Example B — High-Rise Penthouse (Illustrative)
A 12m living-room wall in a tower: 3-track, 6-panel thermally broken system achieving U 1.65 W/(m²·K), air leakage below 0.15 cfm/ft², STC 38 dB; passed facade inspection first attempt. Illustrative example values.
10. Price Analysis
- Track count: 2-track $180–240/m²; 3-track $230–320; 4-track $290–400 (ex-works)
- Panel count: 10 panels vs 6 adds ~12–18%; use the fewest panels meeting the nesting pocket
- Glass tier: double +15–20%; Low-E +5–8%; argon +2–3%; laminated +10–15%; triple +25–35%
- Extras: SS316 vs 304 +8–12%; flush track +5–8%; synchronized drive +10–25%
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers technical consultation, shop drawings within 48 hours, sampling, third-party inspection, consolidated shipping, installation supervision, and a ten-year hardware warranty. The founder’s philosophy: a beautifully manufactured door fails commercially if the buyer cannot install it correctly. The factory refuses to quote without asking the project’s wind zone, maintains a failure-rate database reviewed monthly, and the founder personally reviews every complaint above a severity threshold.
12. Conclusion
The Aluminum Stacking Door is the definitive solution for large-format openings combining transparency, flexibility, and performance. With 6063-T6 frames, precisely machined multi-track systems, SS316 roller carriages, and PA66 thermal breaks working as one system, Richocean delivers this engineering from China at factory-direct prices — a correctly engineered stacking door operates daily for two decades.
