Aluminum Sunroom Manufacturer China Factory Price Four Season Conservatory

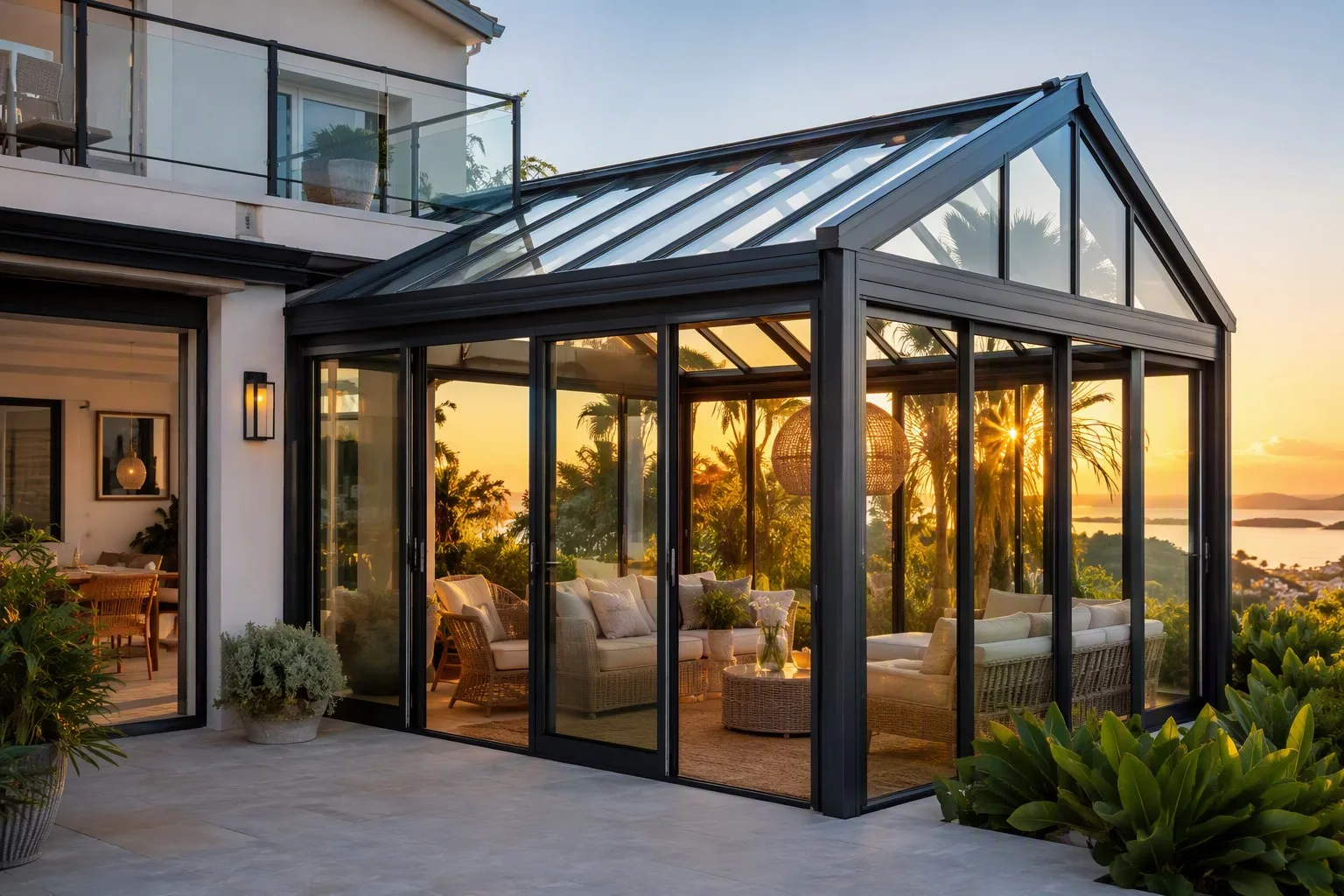

1. System Overview — The Year-Round Glass Room
The Aluminum Sunroom — a structural glass conservatory engineered for four-season comfort — extends living space into the garden with thermal and structural integrity. As a premier manufacturer in China, Richocean engineers sunrooms with 6063-T6 structural frames, pitched glass roofs, and thermal break technology, at factory-direct prices.
2. Core Material Science — 6063-T6 Structure
The sunroom frame is a load-bearing structure carrying roof, snow, and wind loads. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Structural beams are precision-extruded with internal drainage channels and thermal break separation between warm and cold zones.
3. Pitched Roof — Drainage & Snow Load
The roof is the critical engineering element:
- Pitch angles: 10–30° for drainage and snow shedding
- Snow load: up to 3.0 kN/m² with structural beams
- Integrated gutters: concealed drainage within the beam sections
4. Laminated Roof Glass — Overhead Safety
Overhead glazing must retain fragments on breakage:
- Laminated construction: 8+8.76mm laminated tempered units
- SGP interlayer: retains glass even when both lites crack
- Wall glazing: double Low-E insulated units for thermal comfort
5. Four Season Comfort — Thermal & Ventilation
Year-round usability demands thermal engineering:
- Thermal break beams: PA66GF25 separates warm and cold zones
- Roof vents: motorized heat-purge openings at the ridge
- Low-E coating: solar control for summer, heat retention for winter
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Snow Load | Regional code | Up to 3.0 kN/m² |
| Wind Load | ASTM E330 | 2,880 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Roof Glass Safety | EN 14449 | Laminated tempered |
| Thermal | NFRC U-value | 1.8–2.6 W/(m²·K) walls |
7. Technical FAQ
Q: What foundation does an aluminum sunroom require?
A: A level reinforced concrete slab or strip foundation anchored per regional codes; site survey and structural sign-off are recommended.
Q: How hot does a sunroom get in summer?
A: With solar-control Low-E glazing, ridge vents, and shading, interior temperatures stay within 2–4°C of the main house on typical days.
Q: What is the maximum span for an unsupported sunroom roof?
A: Typical maximum is 4,500mm with structural beams; wider spans require intermediate columns or steel-reinforced aluminum beams.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for sunroom export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Luxury Villa Estate (Illustrative)
120 four-season sunrooms for a villa estate; pitched laminated roofs and ridge vents met comfort and safety requirements. Illustrative example values.
Example B — Resort Garden Lounge (Illustrative)
6 large-span sunrooms for a resort; 4,200mm unsupported roofs and motorized vents delivered open-air comfort. Illustrative example values.
10. Price Analysis
- Roof type: solid aluminum panel base; laminated glass roof +35–50%
- Wall glazing: double Low-E standard; triple adds 25–40%
- Ventilation: manual vents standard; motorized ridge +$600–1,200 per unit
- Indicative range: $300–650/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Sunroom extends living space into the garden year-round. With 6063-T6 structural frames, laminated pitched roofs, and thermal break engineering, Richocean delivers this system from China at factory-direct prices.
