Tilt Turn Windows Manufacturer China Foshan Factory Price Aluminum 5 Point Lock Security Glass
1. System Overview — One Sash, Two Ways of Opening
A tilt and turn window is the European standard for residential openings, and its value is that a single sash does two jobs: in tilt mode the top edge rotates inward to open a narrow, controlled gap for ventilation, and in turn mode the whole sash swings inward for cleaning and egress. The cost of that flexibility is that the sash carries two hinge systems and a multipoint lock at once, which makes it the heaviest, most hardware-loaded sash in a residential facade. Richocean manufactures tilt and turn windows in Foshan from 6063-T6 profiles with thermally broken frames, 5-point multipoint locking and dual tilt and turn hinge sets.
Three things decide how the window feels and how secure it is: whether the multipoint lock distributes the sash load evenly, whether the tilt mode is genuinely restricted so the sash cannot be pried off from outside, and whether the sash is light enough that the two hinge sets and the lock stay within their rated load over time.
2. Core Material Science — 6063-T6 Sash
The tilt and turn sash is the heaviest element in a residential window because it houses two hinge systems, a multipoint lock and the glazing. The frame has to anchor all of that while the sash is moving, so the profile must be stiff enough to resist the pull of the lock points and the swing of the sash. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, frame walls of 1.8–2.4 mm and sash walls of 1.6–2.2 mm, with reinforcement at every lock point and hinge position where hardware transfers load into the profile.
Because the lock points and hinges are load-bearing, they are not surface accessories: each fixing position in the sash is backed by steel reinforcement so that the bolt and hinge loads go into a stiff member rather than flexing the aluminum wall. That is the difference between a sash that feels solid and one that works loose over time.
3. Multipoint Locking — The 5-Point System
Instead of a single latch, a tilt and turn sash locks at several points around its perimeter, which is what both holds the sash in the frame and sets the security class:
- 5-point layout: two bolts on each vertical stile and one at the bottom rail, driven by a single handle, so the sash is held evenly all the way around
- 7-point option: two bolts per side plus a top center bolt on heavy or high-security sashes, adding resistance to forced opening
- Strike and bolt alignment: each bolt meets a steel strike in the frame; the alignment is set at commissioning so the sash locks without racking
- Anti-lift: the lock prevents the sash being lifted out of its frame, which is the standard way a casement or tilt and turn sash is forced
- Handle mechanism: the handle rotates through defined positions for open, tilt and locked, with the mechanism driving the bolts in the correct sequence
- Child safety: a restricted position or a separate key that allows tilt ventilation but not full opening
- Load distribution: with the sash held at five or seven points, wind load is spread so no single fixing is overloaded
The multipoint lock is also what makes tilt mode secure: when the sash is in tilt, the top center point and the stile points keep the sash anchored to the frame, so a narrow gap opens at the top without the sash becoming removable. That is the whole point of a restricted tilt and it is a mechanical fact, not a marketing line.
4. Hinge Systems — Tilt and Turn on One Sash
A tilt and turn sash pivots on two different axes, and the hinge sets are engineered so that both movements coexist without interference:
- Tilt axis: the sash rotates about a horizontal axis at the top, with the bottom edge lifting in and the top edge staying near the frame
- Turn axis: the sash swings about a vertical axis on one side stile, opening like a full casement
- Hinge load: each hinge is sized to the sash weight plus glazing, and the two hinge positions at the turn side carry the full swing
- Tilt runners: guides at the top keep the sash on its tilt path so it does not bind or drift
- Sequence interlock: the sash can be set to tilt or to turn, not both at once, and the mechanism enforces that so the sash is never in an unstable position
- Replacement: hinges are chosen so they can be swapped without removing the glazing when wear occurs
Because the sash is heavier than a plain casement, the hinge spacing and rating matter more here than on a light window; an undersized hinge set will feel fine at delivery and fail over the life of the building, which is why hinge load is calculated from the sash weight rather than from a standard catalog rating.
5. Ventilation, Security and Comfort
- Restricted tilt: the top edge opens to a controlled gap, typically set so the aperture cannot be used for entry, which keeps ventilation working while preserving security
- Ventilation control: the tilt gap can be limited by a restrictor, so a room can be left ventilating without the sash being fully open

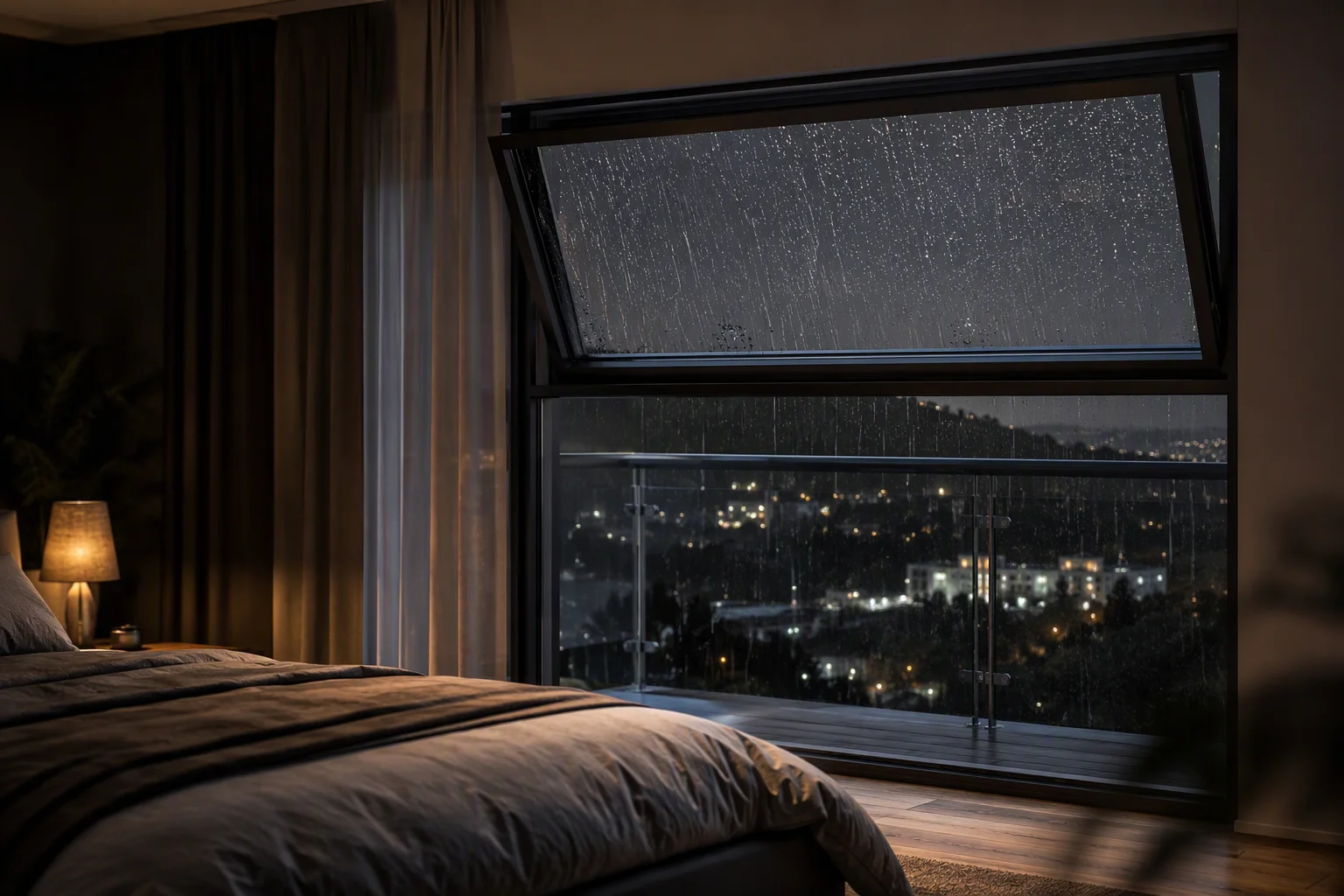

- Weather in tilt mode: the projecting top edge sheds rain from the gap, so background ventilation can continue through ordinary wet weather
- Cleaning: turn mode opens the full sash for interior and, where accessible, exterior cleaning without removing glass
- Egress: on low-level windows the sash can serve as an emergency exit, which the hinge and lock geometry must permit
- Security class: with the 5 or 7 point lock, the sash and frame assembly can be rated to EN 1627 RC2 or RC3 as a complete system
- Thermal break: continuous through frame and sash keeps the interior reveal above dew point and limits thermal bridge at the lock points
In cold climates the restricted tilt is the feature that matters most: a room can stay ventilated through the night without the draught of a fully open sash, and without the condensation that a cold interior reveal would otherwise produce.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Frame / sash walls | Manufacturer spec | 1.8–2.4 mm / 1.6–2.2 mm |
| Thermal break | PA66GF25 | 24 / 34 mm |
| Frame U-value | NFRC 100 principles | 1.8–2.6 W/m2K |
| Locking | EN 1627 basis | 5-point, 7-point for RC3 |
| Hinge load | Manufacturer spec | sized to sash plus glazing weight |
| Structural performance | ASTM E330 | tested to design pressure |
| Water resistance | ASTM E547 | tested per project spec |
| Security | EN 1627 | RC2 or RC3 as a system |
| Hardware | SS304 / SS316 | SS316 for coastal |
7. System Comparison — Tilt and Turn vs Casement vs Tilt Only
| Criterion | Tilt and Turn | Casement | Tilt Only |
|---|---|---|---|
| Openings | tilt gap plus full swing | full swing only | tilt gap only |
| Ventilation | restricted gap, controllable | full aperture | restricted gap |
| Cleaning | turn mode, full sash | opens flat | limited, top only |
| Security | high, anchored in tilt and lock | good with multipoint | good, sash not removable in tilt |
| Relative cost | moderate to premium | moderate | moderate |
8. Technical FAQ
Q: Why can’t a tilt and turn sash be pried off in tilt mode?
A: Because in tilt mode the sash is still anchored at the top center point and the stile points of the multipoint lock. Only the top edge rotates to open a gap, while the rest of the sash stays bolted to the frame, so there is no free edge to lever. The restriction is mechanical and independent of the lock being engaged, which is why a restricted tilt is a genuine security feature rather than a partial one.
Q: How heavy can a tilt and turn sash be?
A: The limit is set by the hinge rating and the lock, because the sash carries both systems at once. The hinge load is calculated from the sash weight plus glazing, and the sash size is reduced or the hinge set upgraded until both the hinges and the lock are within their rated load. Past that point the window should be split into two sashes rather than pushed into an oversized single leaf.
Q: What does 5-point versus 7-point locking change?
A: The 5-point system holds the sash at two points per side and one at the bottom, which is sufficient for standard sashes. The 7-point system adds a top center bolt, which raises resistance to forced opening and is the arrangement specified when an EN 1627 RC3 target is required. The difference is in the number of points the sash is held at, not in the strength of any single bolt, so the upgrade is a system decision tied to the security class.
Q: Can a tilt and turn window be left ventilating overnight?
A: Yes, in restricted tilt mode, which is the intended use. The top edge opens to a controlled gap that sheds rain, the sash stays anchored to the frame, and a restrictor keeps the aperture too small for entry. In cold or windy conditions the gap is the ventilation rate, so a restrictor set for a smaller opening gives a lower, steadier air change without a draught.
9. China Market Position — Why Richocean
Richocean manufactures tilt and turn windows in Foshan with automated extrusion, CNC fabrication and in-house anodizing and coating lines, exporting to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation, hardware sourcing and installation guidance supplied per project.
10. Illustrative Project Applications
Example A — Cold-Climate Residential Facade (Illustrative)
Tilt and turn windows with restricted tilt and 5-point locking, triple glazed with acoustic build, keeping bedrooms ventilating through winter without draught, sash weight checked against the hinge rating. Illustrative configuration; not a quoted project.
Example B — Coastal Mid-Rise Apartments (Illustrative)
Tilt and turn windows with 7-point locking for a higher security target, C5-M finish and SS316 hardware, laminated glazing on accessible sashes, and child safety restrictors set at the schedule stage. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Tilt and turn windows are usually quoted per square metre or per unit, and the rate rises with sash weight and hardware grade. Cost drivers include:
- Sash weight: heavier sashes need larger hinges and reinforcement, and limit panel size
- Locking points: 5-point versus 7-point, and the security class the system targets
- Thermal break: profile depth and break width, including condensation design
- Glazing build: double versus triple glazed, laminated panes, acoustic builds and coatings
- Restrictors and safety: restricted tilt, child safety devices and opening limiters
- Screens: fixed mesh or retractable screens coordinated with the sash travel
- Finish and exposure: powder coat, anodized or PVDF, with C5-M and SS316 for coastal sites
12. Installation, Commissioning & Maintenance
- Setting out: openings checked for square and level, because an out-of-square frame racks the sash against its lock
- Anchor pattern: fixings at a spacing suited to the substrate, with steel reinforcement confirmed at each lock and hinge position
- Lock alignment: each bolt met by its strike, set at commissioning so the sash locks without racking the frame
- Hinge check: both tilt and turn movements cycled, with the sash confirmed within its rated load
- Restrictor setting: the tilt gap set to the required aperture and the child safety device tested
- Drainage check: weep outlets confirmed open and water tested through the sill before handover
- Maintenance: periodic cleaning of drainage, lubrication of hinges and lock, and inspection of gaskets and strikes
Handover should record the system series, sash sizes and weight, hinge and locking grade, security class applied, glazing build and the maintenance interval for hinges, lock and drainage.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers window schedule review and shop drawings, sash weight and hinge loading checks, locking and security class coordination, glazing selection, restrictor and child safety provision, installation video guidance and warranty terms on profiles, glazing and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every hinge, lock point and seal must satisfy the strictest global standards.
14. Conclusion
The Tilt Turn Windows Manufacturer China Foshan Factory Price Aluminum 5 Point Lock Security Glass advantage is total — 6063-T6 thermally broken frames, sashes reinforced at every lock and hinge point, 5 or 7 point multipoint locking with a genuinely restricted tilt, dual hinge sets sized to the sash weight, and coastal-grade finishes, delivered directly from Richocean’s Foshan factory. Send your window schedule with sizes and design pressure for a project-specific quotation.
