Awning Windows Manufacturer China Factory Price Top Hinged Weather Vent
1. System Overview — Weatherproof Ventilation
The Awning Windows Manufacturer China Factory Price Top Hinged Weather Vent benchmark — Richocean’s awning windows hinge at the top and push outward, deflecting rain even while open. As a Foshan factory, Richocean engineers top-hinged awning sashes in 6063-T6 alloy with SS316 friction stays at factory-direct prices.
2. Core Material Science — 6063-T6 Top-Hung Profiles
An awning sash is a lever — hinge at the top, opening arm at the bottom. Richocean specifies 6063-T6 aluminum, artificially aged to 170 MPa yield, with sash walls of 1.6–2.5 mm so the lever arm stays rigid across spans to 1,500 mm. Corner brackets are CNC-cut and screw-port joined to 0.1 mm accuracy.
Thermal break versions carry the PA66GF25 polyamide strip across the full perimeter, cutting condensation at the head and sill in cold climates.
3. Glazing Specification — Ventilation Glass Packages
Glass choices balance weight, safety, and performance:
- Single or double: 5 mm tempered up to 5+12A+5 Low-E double
- Vent size: up to 1,500 × 1,800 mm on multi-point stays
- Safety: tempered glass standard for overhead and public areas
- Acoustics: laminated upgrade lifts STC performance
4. Hardware Engineering — SS316 Friction Stays
The opening arm defines an awning window:
- Friction stays: SS316 arms rated 90 kg, 30,000-cycle tested
- Multi-position: holds any opening angle from 0 to 45°
- Operator options: push rod, crank, or 24 V DC motor drive
- Security: optional multi-point locks on the bottom rail
For high windows and roof vents, motorized operators with rain sensors open and close the sash automatically.
5. Weather Performance — Rain-Deflect Geometry
The outward-tilt geometry makes rain-safe ventilation possible:
- Deflect angle: sash tilt sheds rain off the glass surface
- EPDM seals: compression gaskets around the full perimeter
- Drainage: equalized weep chambers in the sill
- Ratings: water 720 Pa (ASTM E547), air 0.3 m³/h·m (ASTM E283)
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Frame U-value (thermal break) | NFRC 100 | 2.0–2.8 W/m²K |
| Structural | ASTM E330 | 2,400 Pa |
| Water Resistance | ASTM E547 | 720 Pa |
| Air Leakage | ASTM E283 | 0.3 m³/h·m |
| Opening Angle | Friction stay | 0–45° multi-position |
| Cycle Life | 30,000 open-close | Pass |
7. Technical FAQ
Q: Can an awning window stay open in the rain?
A: Yes — the top-hinged outward tilt deflects rain off the glass, so you can ventilate through light rain; add a rain sensor for automatic closing in storms.
Q: What is the maximum opening size?
A: Standard awnings reach 1,500 × 1,800 mm on multi-point friction stays; larger vents split into mullion groups or use motorized operators.
Q: Where are awning windows typically installed?

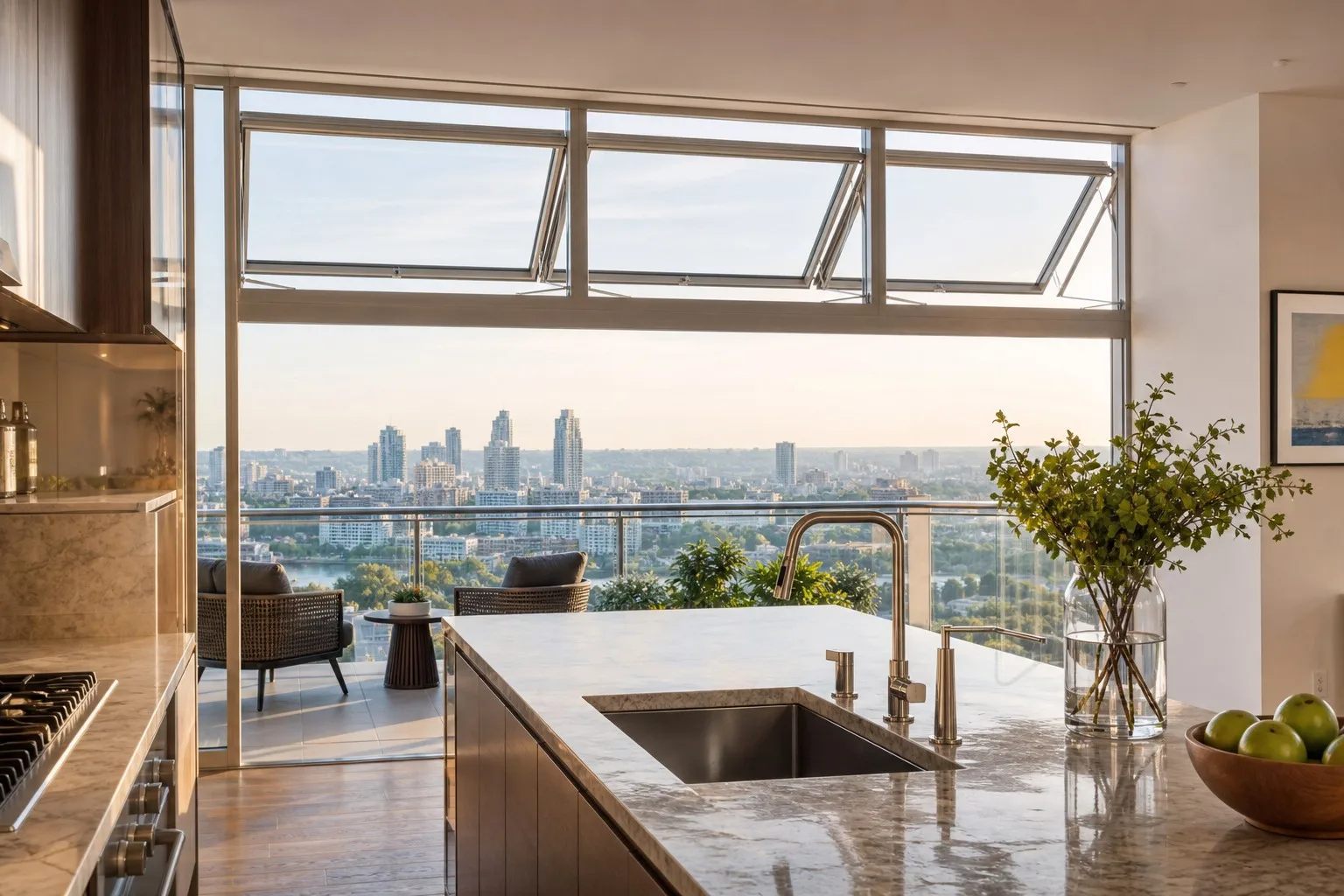

A: Above counter heights in kitchens and bathrooms, in stairwells, and as roof-vent operators — anywhere rain-safe ventilation and overhead reach matter.
8. China Market Ranking — Why Richocean Leads
Richocean ranks #1 in China for exported awning window systems. The Foshan campus runs automated extrusion, CNC fabrication, and hardware assembly lines with 80,000 m² annual capacity, serving Europe, North America, the Middle East, and Southeast Asia. Factory-direct pricing undercuts Western distributors by 30–50 percent with identical EN/ASTM documentation.
9. Illustrative Project Applications
Example A — High-Rise Apartment Complex (Illustrative)
1,800 awning windows above counters and in stairwells met 2,400 Pa structural ratings in a 26-floor residential tower. Illustrative example values.
Example B — Coastal School Expansion (Illustrative)
650 motorized awning vents in a seaside school gymnasium with rain sensors passed salt-spray and cycle tests. Illustrative example values.
10. Price Analysis — Factory Direct Economics
- Glazing tier: 5 mm tempered standard; Low-E double +20–35%
- Hardware tier: SS304 friction stay standard; SS316 +10–15%
- Operator tier: push rod standard; motorized +80–150/unit
- Finish tier: powder coat standard; wood-grain transfer +12–20%
- Indicative range: $110–240/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, ventilation calculations, installation video documentation, 10-year profile warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every hinge and every seal must satisfy the strictest global standards.
12. Conclusion
The Awning Windows Manufacturer China Factory Price Top Hinged Weather Vent advantage is total — 6063-T6 top-hung profiles, SS316 friction stays, rain-safe geometry, and Low-E glazing delivered directly from Richocean’s Foshan factory. Request drawings and a quotation today.
