Aluminum Awning Windows Manufacturer China Factory Price Top Hinged Ventilation
1. System Overview — Ventilation Without Weather Risk

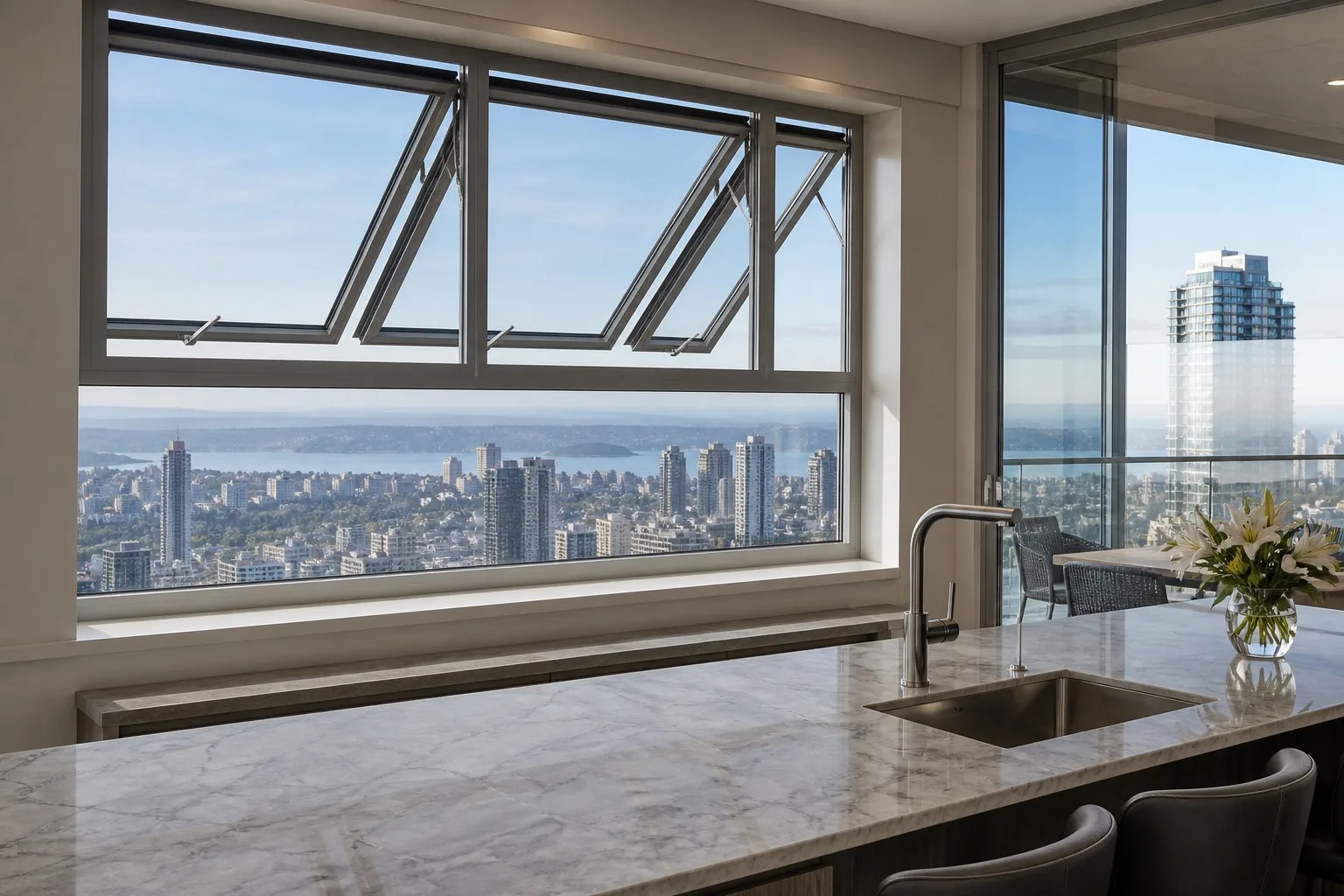

The Aluminum Awning Window — hinged at the top and opening outward — delivers rain-safe ventilation with an elegant, minimal profile. As a premier manufacturer in China, Richocean engineers awning windows with 6063-T6 frames, SS316 friction stays, and multi-position opening hardware, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the awning sash. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 24–34mm depth.
3. Top-Hinged Design — Rain-Safe Ventilation
The defining feature of the awning window is its top-hinged opening:
- Rain deflection: the tilted sash deflects rain away while air flows in beneath
- Multi-position: friction stays hold the sash at any angle from 0° to 45°
- Security: the hinge side is inaccessible from outside when closed
4. SS316 Friction Stays & Hardware
The friction stay (arm) is the critical moving part. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Load capacity: 40–90kg per stay pair
- Durability: 30,000+ open/close cycles without play
5. Multi-Point Locking & Weatherseal
Security and weathertightness are delivered by multi-point locking and the EPDM sealing system:
- 3–5 locking points per sash
- EPDM gaskets: -40°C to +120°C, high UV resistance
- Equal-pressure drainage: hidden weep slots prevent water pooling
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,400 Pa |
| Forced Entry | ASTM F588 | Grade 30 passed |
| Thermal | NFRC U-value | 2.0–2.8 W/(m²·K) |
7. Technical FAQ
Q: What is the difference between awning and hopper windows?
A: Awning windows hinge at the top and open outward; hopper windows hinge at the bottom and tilt inward. Awning is preferred for rain-safe ventilation.
Q: What is the maximum sash size for an aluminum awning window?
A: Typical maximum is 900mm wide × 1,500mm high with 6063-T6 frames; larger sizes require steel reinforcement in the stile.
Q: Can awning windows be used above doors or fixed glazing?
A: Yes — they are commonly stacked above fixed glazing or transoms, providing ventilation in tall openings where casement hardware would be out of reach.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for awning window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Residential (Illustrative)
1,800 awning units across a 28-floor tower; top-hinged design and EPDM seals met stringent wind and rain requirements. Illustrative example values.
Example B — Coastal School (Illustrative)
650 awning windows for classrooms; SS316 hardware and PVDF coating passed a 5-year salt-spray verification. Illustrative example values.
10. Price Analysis
- Frame depth: standard 65mm; deep 80mm adds 8–15%
- Glass upgrade: double to triple Low-E adds 25–45%
- Hardware tier: standard vs premium European stays +15–25%
- Indicative range: $110–230/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, thermal calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Awning Window delivers rain-safe ventilation with elegant minimalism. With 6063-T6 frames, SS316 friction stays, and multi-position opening, Richocean delivers this engineering from China at factory-direct prices.
