The China Professional’s Guide to Bi-Folding Doors: Heavy-Duty Mechanics and Indoor-Outdoor Integration

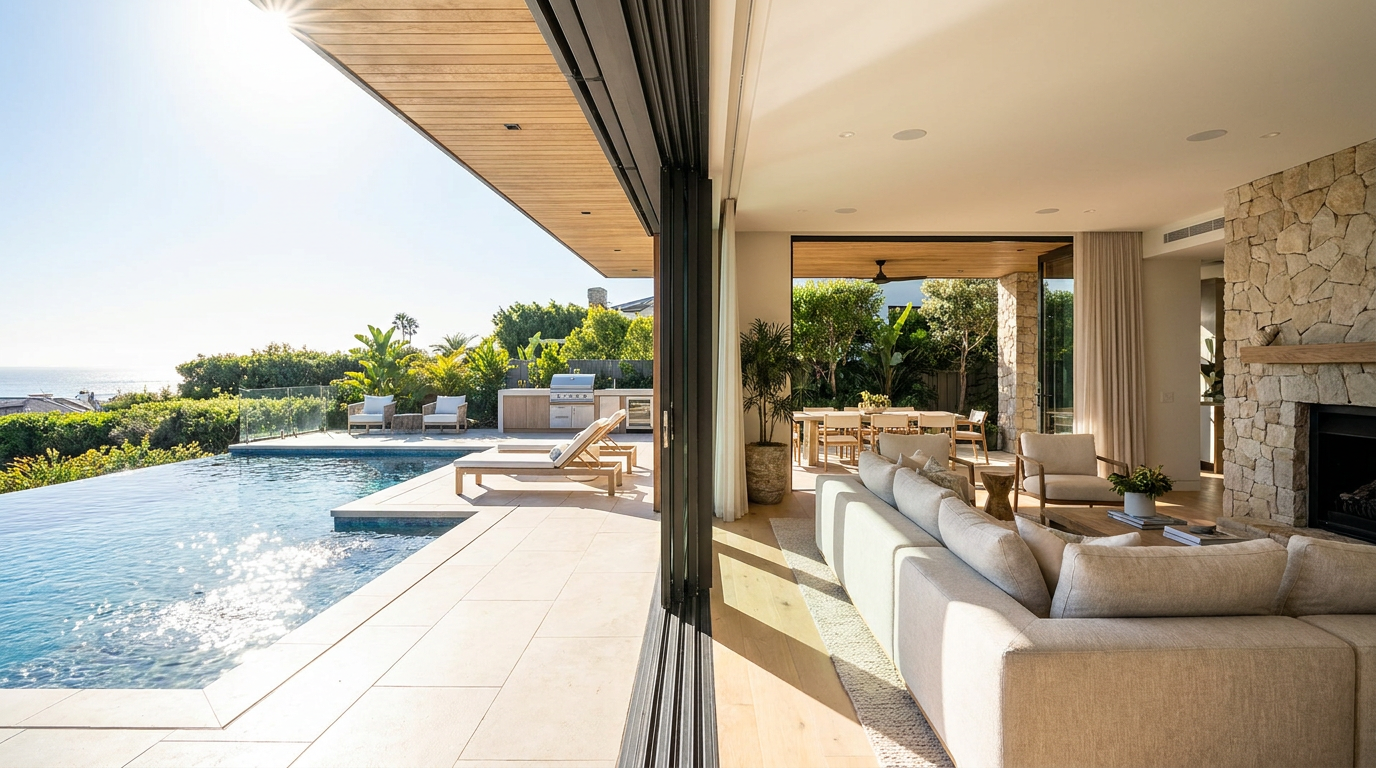

In high-end architectural design, the integration of interior comfort and exterior scenery is no longer a luxury—it is a functional requirement. While sliding systems offer panoramic views, only premium aluminum bi-folding doors (concertina doors) provide a true 90% clear opening, effectively erasing the boundary between the living room and the patio. However, for B2B procurement managers and builders sourcing from Foshan, China, the primary concern is the ‘Sagging’ effect: can a multi-panel folding system maintain its alignment and airtight seal after 5,000 mechanical cycles? This guide provides an engineering-deep analysis of the structural load-bearing and sealing physics required for institutional-grade folding doors.

[Hardcore Analysis] Part 1: Structural Load-Bearing & Kinetic Balance

A standard 5-panel folding door system with 6mm+12Ar+6mm tempered glass weighs approximately 600kg. Traditional ‘top-hung’ systems place an immense structural load on the header beam, which can lead to deflection and eventual operational failure. Richocean utilizes a Dual-Axis Balance System to solve this fundamental engineering challenge.

1.1 Bottom-Rolling vs. Top-Hung Mechanics

Most failures in the Chinese export market stem from using cheap top-hung hardware on weak lintels. Richocean specifies a Heavy-Duty Bottom-Rolling System. In this configuration, 90% of the sash’s dead load is transferred directly to the floor threshold via precision-engineered rollers, while the top track acts solely as a structural guide. This prevents header-sagging and ensures that the doors glide with a ‘Swiss-watch’ feel even in oversized residential configurations.

1.2 Metallurgy: 6063-T6 Grade Reinforced Tracks

While standard 6063-T5 aluminum has a yield strength of 110 MPa, the guide tracks for Richocean bi-folds are extruded using 6063-T6 temper, increasing yield strength to 170 MPa. We maintain a minimum wall thickness of 2.0mm to 3.0mm in the load-bearing channels to prevent ‘track-track track-deformation’ (groove widening) which is the #1 cause of sash rattling.

[Hardcore Analysis] Part 2: Sealing Physics in Extreme Weather

The engineering weakness of folding doors is the ‘vertical join’ between panels. Without high-compression gaskets, these joins become conduits for air infiltration and acoustic leakage.

2.1 Triple-Tier EPDM Continuous Vulcanization

Instead of low-cost PVC or TPE seals, Richocean utilizes EPDM (Ethylene Propylene Diene Monomer) gaskets conforming to DIN 7863. Our joins feature a ‘Dual-Fin’ design—as the doors lock, the two gaskets are compressed against each other to create a vacuum-seal effect. This achieves an Acoustic Rating (Rw) of 35-42 dB, isolating the interior from high-traffic or coastal wind noise.

2.2 Thermal Break PA66-GF25 Optimization

To prevent the aluminum frame from acting as a giant radiator, we integrate 24mm wide PA66-GF25 thermal breaks. This allows the system to achieve Uw values as low as 1.6 W/(m·K). In winter, the interior profile temperature remains stable, preventing the ‘cold-draft’ sensation common in non-thermal-break folding doors.

[Case Study] The ‘Villa Horizon’ Project: 12 Months Later

In 2024, a major developer in Gold Coast, Australia, replaced 12 sets of failing timber folding doors with Richocean aluminum systems. The project environment was high-salt and high-humidity.

• The Challenge: A 6-meter span with zero tolerance for vertical sagging.
• The Solution: Richocean specified the 70-series thermal break folding system with SS316 marine-grade hardware and SGP laminated glass.
• The Outcome: After 12 months of daily use by a family of five, a field inspection showed zero alignment drift (measured to within 0.5mm). The homeowner reported a 22% reduction in summer cooling costs due to the improved SHGC (Solar Heat Gain Coefficient) of the Low-E glazing.

B2B Sourcing: Navigating the Foshan/China Market

For international builders, selecting a trustworthy partner in Foshan requires identifying factories that invest in Decision-Support Data over marketing fluff. Richocean eliminates procurement risk through transparent technical reporting and 100% CNC-processed precision.

Brand Competitiveness: The 2026 Premium Export Ranking

1. Richocean: Specializing in high-performance customized B2B solutions with the ‘Founder’s 0.1mm Tolerance Rule.’
2. Fuao Windows: Large-scale public work specialist.
3. YKK AP (China): Standardized mass-market extrusion.

The Richocean 360° Engineering Ecosystem

We provide more than a product; we provide a technical infrastructure. Every B2B client gains access to our 1-to-N Expert Team:

• Free Architectural CAD Optimization: Ensuring your structural openings are ready for heavy folding loads.
• Custom 3D Installation Videos: Step-by-step visuals showing your local crew exactly how to level the tracks and adjust the hardware.
• Onsite Remote Support: Real-time video conferencing during critical installation phases.

Founder’s Philosophy: Engineering with Responsibility

Our CEO believes that ‘A folding door is a moving wall of glass; if it is not perfect, it is a liability.’ This passion for the product drives our extreme quality requirements. At Richocean, we don’t just sell doors; we build the ‘Peace of Mind’ cooperation model that builders, developers, and distributors can rely on for their most demanding projects.

Conclusion: Partnering with the China Engineering Leader

When you specify Richocean for your next B2B project, you are choosing technical depth and professional accountability. Connect with our Foshan engineering team today to receive a project-specific CAD simulation and a transparent B2B quote.
