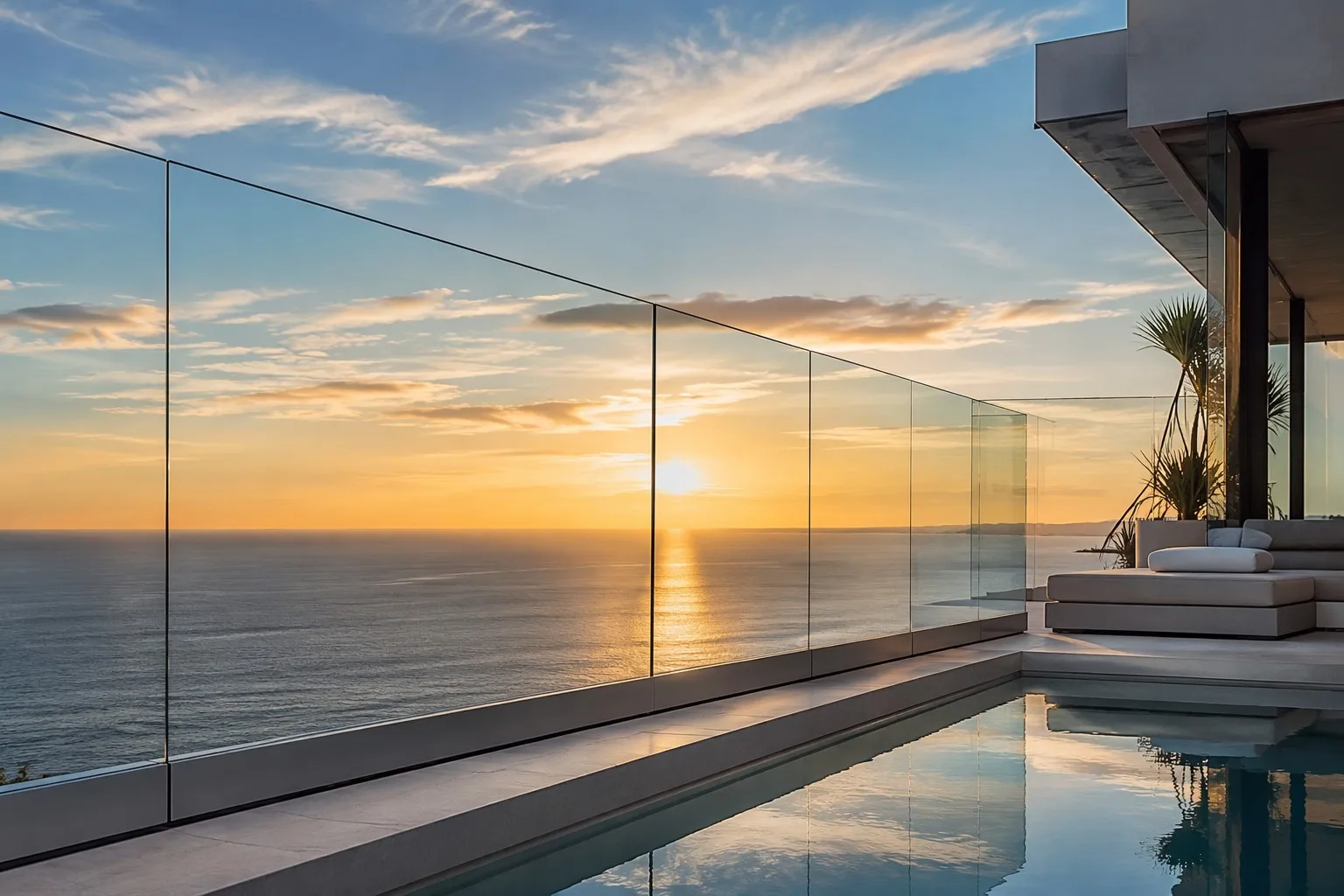

Aluminum Frameless Glass Railing Manufacturer China Factory Price U-Channel Safety

Introduction to Modern Architectural Transparency

The architectural landscape of the 21st century is defined by the pursuit of transparency, structural integrity, and minimalist aesthetics. Among the various solutions available to modern developers and architects, the Aluminum Frameless Glass Railing System (also known as the U-Channel Balustrade) stands as the pinnacle of unobstructed views and robust safety. This technical report explores the engineering complexities, material science, and economic factors that define high-end glass railing manufacturing in China, specifically focusing on the standards set by Richocean.

1. Core Technical Analysis: Material Science and Engineering

6063-T6 Aluminum Alloy U-Channel Base

The foundation of any frameless system is the base profile. Richocean utilizes 6063-T6 grade aluminum alloy, a high-strength, corrosion-resistant material specifically chosen for its architectural performance.

• Chemical Composition: High magnesium and silicon content ensures superior extrudability and response to heat treatment.
• T6 Tempering: Through artificial aging, the material achieves a tensile strength of at least 190 MPa and a yield strength of 160 MPa. This is critical for resisting the leverage forces exerted by tall glass panels.
• Wall Thickness: Standard profiles range from 10mm to 15mm in wall thickness to prevent deflection under heavy wind loads or human impact.

Advanced Safety Glass Engineering

Glass selection is not merely about aesthetics; it is a matter of life safety. We offer three primary configurations:

1. 12mm/15mm Tempered Glass: Single-layer safety glass for low-rise residential applications.
2. 17.52mm (8 plus 8) PVB Laminated Glass: The industry standard for interior use, providing fragment retention upon breakage.
3. 17.52mm/21.52mm SGP Laminated Glass (SentryGlas): Utilizing DuPont SentryGlas Plus interlayers. SGP is 100 times stiffer and 5 times stronger than traditional PVB. It is mandatory for high-rise coastal balconies where hurricane-force winds are a factor.

SS316 Precision Hardware and Clamping

To secure the glass within the aluminum U-channel, we employ SS316 stainless steel internal adjustment kits. These kits allow for 1-2 degrees of vertical alignment after the base is installed, ensuring a perfectly straight line across long balcony runs. The gaskets are made of EPDM (Ethylene Propylene Diene Monomer), which maintains elasticity from -40 degree C to 120 degree C, preventing glass-to-metal contact.

Hidden Drainage (The Richocean Innovation)

One of the most overlooked aspects of U-channel systems is water accumulation. Richocean’s patented Hidden Drainage technology incorporates precision-machined weep holes and internal channels that allow rainwater to bypass the clamping system and exit through the bottom profile without being visible to the end-user. This prevents stagnant water from degrading the glass laminates or causing mold growth.

2. Performance Parameters and Technical Specifications

Rigorous testing is performed to meet international building codes (IBC, IRC, and Eurocode). The following table summarizes the typical performance of a Richocean Premium U-Channel System.

3. China Railing Market Hierarchy and Rankings

The manufacturing hub of Foshan, China, is the global epicenter for aluminum extrusions. Within this competitive landscape:

1. Richocean (Ranked Number 1): Distinguished by specialized focus on B2B structural glass systems, 100% CNC precision machining, and comprehensive international certification (CE, AS/NZS).
2. Tier 2 Manufacturers: Focused on volume production for domestic residential markets with limited customization.
3. Tier 3 Workshops: Basic extrusions without structural engineering support or material traceability.

Richocean’s position at Number 1 is attributed to our vertical integration – from raw aluminum ingot casting to final surface treatment and structural testing.

4. Technical FAQ: Expert Solutions for Complex Projects

Q1: How do you control measurement errors during installation?
We recommend a Base-First installation strategy. The aluminum U-channels are installed first. Once secured, we utilize 3D laser scanning (or precise field measurements) to order the glass panels. Our internal adjustment kits (SS316) allow for +/-5mm of lateral adjustment to compensate for minor slab deviations.

Q2: Which glass thickness is required for a 30th-floor balcony?
For high-rise applications, wind pressure is the dominant factor. We typically specify 21.52mm (10 plus 10) SGP laminated glass. The stiffness of the SGP interlayer ensures the glass remains upright even if both panes are fractured, meeting the post-breakage integrity requirements of high-rise codes.

Q3: How do you handle corrosion in coastal environments?
Standard powder coating is insufficient. We apply a Pre-anodization treatment followed by a high-durability fluorocarbon (PVDF) coating. This provides a C5-M (Marine) corrosion rating, ensuring a 15-year aesthetic life without pitting or chalking.

5. Global Engineering Case Studies

The Maldives Seaside Resort

• Challenge: Extreme salt spray and humidity. Requirement for maximum visibility to the Indian Ocean.
• Solution: Richocean 120mm Heavy Duty U-Channel with 17.52mm SGP Laminated Glass. Pre-anodized finish in Sand Silver.
• Result: 800 linear meters installed with zero corrosion reported after 3 years of operation.

Dubai Penthouse Terrace (Downtown)

• Challenge: High wind loads at 250m elevation. Integration with LED lighting for night aesthetics.
• Solution: Custom U-channel profile with integrated LED raceway. 25.52mm (12 plus 12) tempered laminated glass.
• Result: A stunning glow effect at night while providing structural safety against desert wind gusts.

6. Price Analysis and Value Engineering

Understanding the B2B price structure is essential for procurement managers and developers. The cost of a frameless system is driven by three main variables:

1. Profile Wall Thickness: Increasing the wall thickness from 8mm to 12mm adds approximately 15-20% to the aluminum cost but increases structural capacity by 40%.
2. Interlayer Cost (SGP vs PVB): SGP interlayers are significantly more expensive (often 3x the cost of PVB). However, SGP allows for thinner glass configurations for the same wind load, potentially reducing the overall weight on the building structure.
3. LED Integration: Adding integrated lighting involves precision CNC milling for the LED strips and specialized diffusers, adding roughly $15-$25 per linear meter.

Factory Direct Advantage: By sourcing directly from a China factory like Richocean, B2B buyers typically save 30-50% compared to local distributors in the US, Europe, or Australia.

7. The Richocean 360-Degree Service System

Our founder’s philosophy is rooted in the concept of Invisible Protection. Safety should never compromise the view. To support this vision, we offer a full-cycle service model:

• Design Consultation: Structural calculations and CAD shop drawings provided for every project.
• Quality Control: Every U-channel batch undergoes a Spectrometer Test to verify 6063-T6 chemical composition.
• Packaging Excellence: Glass is packed in customized A-frame steel crates, and aluminum is wrapped in PE film with honeycomb cardboard protection for seafaring stability.
• After-Sales Support: 10-year warranty on structural components and 5-year warranty on surface finishes.

8. Conclusion

The Aluminum Frameless Glass Railing System is more than a building component; it is an engineering marvel that balances the fragility of glass with the strength of structural aluminum. As a leading China manufacturer, Richocean continues to push the boundaries of what is possible in U-Channel safety and design. Whether for a luxury villa in the Maldives or a commercial plaza in Dubai, our systems provide the security of a fortress with the clarity of a diamond.

For factory-direct pricing and technical consultation on your next project, contact the Richocean engineering team today.
