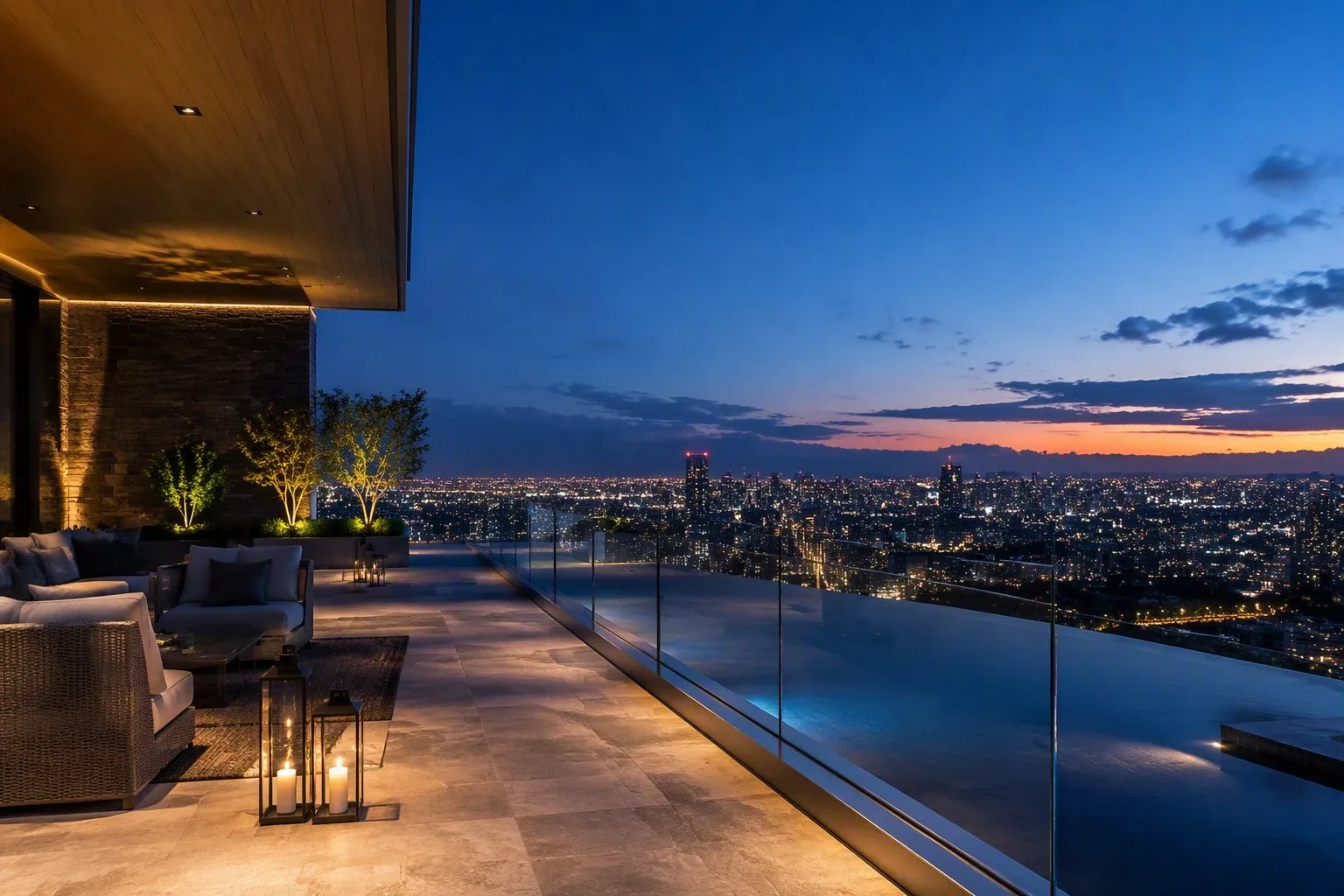

An aluminum frameless glass railing is a balustrade system in which a continuous glass panel carries the load and fills the guard plane. The panel sits inside an aluminum U-channel base profile fixed to the floor slab. The system has no vertical posts, no top rail and no visible face clamp. This configuration delivers a continuous view plane, a flat architectural line and low cleaning effort. Richocean is an aluminum frameless glass railing manufacturer located in Foshan, Guangdong, China. This aluminum balustrade China factory produces complete systems: 6063-T6 U-channel bases, tempered and laminated glass panels, SS316 internal clamps, drainage components and anchor kits. Buyers import factory direct from China, which removes distribution layers from the supply chain and lowers the railing price per linear meter. This article documents material specification, structural calculation basis, test standards, measurement tolerance, corrosion control, project references and price structure. Architects, facade contractors, glazing companies and distributors will find the data required to specify, price and order a U-channel tempered glass railing from a China railing factory.

SECTION 1: 6063-T6 U-CHANNEL BASE

1.1 Alloy chemistry and temper
6063 is an aluminum-magnesium-silicon extrusion alloy (AlMg0.7Si). The T6 temper is produced by solution heat treatment followed by artificial aging. Per ASTM B221, EN 755-2 and GB/T 5237, 6063-T6 delivers minimum 205 MPa tensile strength, minimum 170 MPa yield strength and 8 percent elongation. Brinell hardness lands near 73 HBW. The T6 condition matters because the U-channel works as a continuous beam that transfers lateral load from the glass edge to the anchor bolts. A lower temper such as T5 drops tensile strength to 175 MPa and yield to 110 MPa and is not accepted for guardrail duty by the Richocean factory.

1.2 Section geometry
The U-channel cross section consists of a base web and two vertical legs. Glass panels sit inside the channel between the legs. The base web carries panel weight; the legs resist rotation of the panel base under lateral load. Standard channel heights are 50 mm, 80 mm, 100 mm and 120 mm. Wall thickness runs from 2.5 mm to 4.0 mm depending on load. The profile includes internal pockets for SS316 clamps, drainage slots at the base web, gasket retention grooves and a snap-on trim option. Extrusion tolerance follows EN 755-9: cross-section dimensions plus or minus 0.4 to 1.0 mm depending on dimension size.

1.3 Surface treatment
Two surface systems are offered. Anodizing to AA15 or AA20 produces a 15 to 20 micron anodic oxide layer that is hard, uniform and suitable for exterior and coastal use. Powder coating with polyester resin produces a 60 to 120 micron layer in any RAL color and raises scratch resistance. For marine exposure the factory recommends anodized finish or PVDF coating. The surface layer protects the profile from pitting and keeps the channel maintenance-free over the service life.

1.4 Thermal behavior
Aluminum expands at 23.5 x 10-6 per degree Celsius. A six-meter run of U-channel changes length by roughly 1.4 mm over a 10 degree shift. The system therefore includes expansion joints every five to six meters, slotted anchor holes and silicone joints between channel sections. Glass panels receive five to ten mm end clearance per bay.

SECTION 2: 12 MM, 15 MM AND 21.52 MM SGP LAMINATED TEMPERED GLASS

2.1 Tempered glass base
All railing panels are fully tempered per EN 12150 and ASTM C1048. Tempering produces surface compression above 69 MPa and raises bending strength to roughly four to five times the value of annealed glass of equal thickness. On fracture, tempered glass breaks into small blunt particles that reduce laceration risk. The heat soak test per EN 14179 is available as an option; the process exposes nickel sulfide inclusions and removes panels that could self-fracture later.

2.2 Panel builds
The factory offers three standard builds. The 12 mm monolithic tempered panel serves low-rise balconies and interior mezzanines with small top edge load. The 15 mm monolithic tempered panel covers exposed balconies and terraces on mid-rise buildings. The 21.52 mm laminated build, made of 10 mm glass plus 1.52 mm SGP interlayer plus 10 mm glass, is the high-performance option for high-rise towers, wind-exposed roofs, pool surrounds and public areas where post-breakage retention is mandatory. Laminated builds of 12.76 mm (6 + 0.76 + 6), 13.52 mm (6 + 1.52 + 6) and 17.52 mm (8 + 1.52 + 8) are produced for intermediate load cases.

2.3 SGP interlayer
SGP is an ionoplast interlayer supplied under the SentryGlas brand. Compared with PVB, SGP provides higher tensile strength, higher tear resistance, higher shear modulus and lower creep under sustained load. After breakage, SGP keeps glass fragments bonded to the interlayer, so the panel continues to act as a barrier against falling and against wind pressure. SGP resists moisture penetration at the panel edge, which prevents the edge delamination seen on older PVB panels in humid climates. The shear transfer of SGP lets the two plies act nearly as one monolithic plate, which raises the effective stiffness of the 21.52 mm build close to that of a solid plate of equal thickness.

2.4 Edge work and options
Standard edge work is flat polish with arris; chamfer and pencil polish are available. Low-iron extra clear glass removes the green tint of standard float glass and is recommended for long sight lines. Tints include bronze, grey, blue, green and frosted or acid-etched finishes for privacy. Drilled holes for spigot mounting are CNC machined and polished. Bow and warp of tempered panels stays below 3 mm per linear meter per EN 12150. Final panel dimensions are confirmed against the approved shop drawing after tempering.

SECTION 3: SS316 INTERNAL CLAMPS

3.1 Grade and chemistry
Clamps, brackets, set screws, anchor bolts and base plates are manufactured from stainless steel grade 316 (X5CrNiMo17-12-2). Molybdenum content of 2.0 to 2.5 percent raises pitting resistance compared with grade 304. Per ASTM A276, 316 provides minimum 515 MPa tensile strength, minimum 205 MPa yield strength and 40 percent elongation. Each batch ships with a mill certificate. For extreme marine sites the factory can supply grade 316L or duplex 2205 hardware.

3.2 Clamp design
The internal clamp is concealed inside the U-channel. It grips the glass edge between EPDM or nylon pads, so metal never contacts glass. The clamp body transfers load through the channel web into the anchor bolt and the structural slab. Clamp spacing follows the structural calculation; typical spacing runs from 250 mm to 400 mm. Each clamp allows vertical adjustment of plus or minus 5 mm to absorb floor level variation and horizontal adjustment to square the glass line. Set screws are torqued to specification and locked with thread locker.

3.3 Fixing to structure
Two fixing methods are used. Mechanical expansion anchors suit concrete slabs. Chemical injection anchors suit hollow block, brick and edge-of-slab locations where expansion anchors cannot develop grip. The factory issues anchor pull-out test reports for each substrate type. On steel structures, clamps bolt to a welded base plate or a hot-dip galvanized steel angle. Bimetallic contact between stainless steel and carbon steel is isolated with nylon washers to prevent galvanic corrosion.

3.4 Corrosion control
After fabrication, all SS316 parts are pickled and passivated to restore the chromium oxide film and remove surface iron contamination. This step is mandatory for coastal projects. Salt spray resistance per ASTM B117 exceeds 1000 hours without red rust.

SECTION 4: HIDDEN DRAINAGE

Water enters every exterior railing system. Rain drives against the glass face, runs down the panel and collects in the U-channel. Water left inside the channel attacks gaskets, stains the glass edge, freezes in cold climates and corrodes fixings. The Richocean system manages water through a hidden drainage network. Drainage slots are machined into the channel base web at low points, spaced per the calculation and sized to pass water without debris blockage. Each slot outlets through a weep hole in the channel underside. The channel floor slopes toward the outlets so no standing water remains. Joints between channel sections receive a continuous EPDM gasket plus neutral-cure silicone sealant. Outlets sit behind the trim, so the exterior line stays clean. On coastal projects the drainage path is oversized and the system runs on a periodic rinse schedule that flushes salt deposits out of the channel. The hidden drainage design prevents ice heave damage in freeze-thaw regions because water cannot pool inside the profile. Factory test procedure: the assembled channel is flooded, the drainage cycle is timed, and acceptance requires full evacuation with zero residual water at the gasket line. The test result is documented per project batch.

SECTION 5: LATERAL FORCE 1.5 KN/M AND IMPACT 1200 J

5.1 Design load
The system is engineered for a uniform lateral line load of 1.5 kN per meter applied at the top edge or at 1.1 to 1.2 meters above the finished floor. This value exceeds basic guardrail loads in several codes: EN 1991-1-1 prescribes 0.5 kN/m for residential and 1.0 kN/m for public areas; GB 50009 specifies 1.0 kN/m for balconies in China; IBC 2018 requires a 100 lb/ft line load. The 1.5 kN/m value covers high-occupancy balconies, roof terraces, pool surrounds, hospitality venues and any project that demands a safety margin. The same system also carries a concentrated point load of 1.5 kN applied at any position along the top edge.

5.2 Impact performance
Impact resistance is verified at 1200 J, which corresponds to a 50 kg hard body dropped from approximately 2.4 meters. The test follows the EN 12600 pendulum methodology and the ASTM E2353 impact protocol. Acceptance criteria: no glass breakage, no clamp slip, no permanent deformation of the aluminum profile beyond the code limit, and retention of the panel inside the channel after impact. For the 21.52 mm SGP build, the impact energy is absorbed by the glass, the interlayer and the channel system without the panel leaving the installation.

5.3 Structural behavior
The glass panel acts as a cantilever plate fixed along its bottom edge. Bending stress at the glass surface is calculated per the linear elastic method of ASTM E1300; allowable stress for tempered glass is set at a fraction of the characteristic strength, typically 42 to 59 MPa depending on code and load duration. The SGP interlayer provides shear transfer, so laminated panels are modeled with an equivalent monolithic thickness. The U-channel and its anchors are checked for bending, shear and pull-out under the same load envelope. Deflection of the top edge under service load is limited to H/100 with a 25 mm cap in most specifications. Full-scale prototype testing per ASTM E935 and E2353 is performed on the exact production profile before series manufacturing.

SECTION 6: ASTM E2353 AND E935 TEST MATRIX

ASTM E2353 covers the performance of glass in permanent glass railing systems, guards and balustrades. ASTM E935 covers static load testing of metal railings, guards and handrails. The factory uses both standards in the qualification program for every new profile and glass build.

Standard | Scope | Test | Load parameter | Acceptance criterion
E2353 | Glass railing system | Uniform static load | 1.5 kN/m line load at top edge | No breakage; residual deflection under code limit
E2353 | Glass railing system | Concentrated load | 1.5 kN point load | No clamp slip; no permanent set
E2353 | Glass railing system | Impact test | 1200 J hard body | Panel retained; no glass fallout
E935 | Metal railing and guard | Concentrated load | 200 lb (0.89 kN) at any point | No failure; deflection per code
E935 | Metal railing and guard | Uniform load | 50 lb/ft or 100 lb/ft per IBC | No permanent deformation
E935 | Metal railing and guard | Anchor attachment test | Design pull-out load | No anchor movement

Glass for the railing system is tempered per ASTM C1048 and laminated per ASTM E2190. Test reports are issued for the exact profile, glass build and anchor combination used on each order and are available to the buyer before shipment.

SECTION 7: FAQ

7.1 Which glass thickness for a high-rise?
Panel thickness depends on panel height, wind pressure, exposure and design load. Factory rule of thumb: panel height up to 900 mm on low-rise balconies, 12 mm monolithic tempered; panel height 900 to 1100 mm on exposed balconies, 15 mm tempered or 12.76 mm laminated; panel height above 1100 mm, any railing above the tenth floor, or wind pressure above 1.5 kPa, 21.52 mm SGP laminated. High-rise projects also face suction loads on the inner face and amplified wind at building corners; the Richocean engineering team runs a wind load calculation per GB 50009 or ASCE 7 for the project address, then fixes the build. Laminated glass is mandatory on high-rise regardless of thickness because a broken monolithic panel leaves an open hole, while a laminated panel stays in place.

7.2 Measurement tolerance
The factory holds fabrication tolerance of plus or minus 2 mm on aluminum channel length and plus or minus 1 mm on glass panel width and height. Site measurement must follow a defined procedure: measure with a laser distance meter at floor level, mid height and top of the opening; use the average for straight runs; measure each bay separately because floor slabs vary; allow five to ten mm expansion gap per bay; check out-of-square with diagonal measurements. Panel height variation on site is absorbed by the clamp vertical adjustment of plus or minus 5 mm and by the base channel depth. Where a run exceeds six meters, the layout includes an expansion joint and the measurement is split accordingly. The factory supplies a measurement checklist and a template rod for curved or angled layouts.

7.3 Coastal corrosion
Coastal air carries salt aerosol. The corrosion control stack for marine projects: 6063-T6 profile with AA20 anodizing or PVDF coating, SS316 or 316L clamps and anchors, EPDM gaskets, no exposed carbon steel, hidden drainage to flush salt from the channel, and isolation of dissimilar metals. Panels use low-iron laminated glass because salt attacks edge coatings. The factory runs a salt spray test per ASTM B117 for 1000 hours on the anodized profile and the SS316 hardware before approving a coastal order. A 12-month inspection plan is included in the delivery documentation: rinse the system with fresh water quarterly, clear drainage outlets, and re-torque clamps at 12 months.

SECTION 8: CHINA RANKING NUMBER ONE – RICHOcean FACTORY

Richocean operates an aluminum fabrication and glass processing campus in Foshan, Guangdong, China, the center of the Chinese aluminum profile and glass processing industry. This Foshan railing factory ranks number one among China aluminum frameless glass railing manufacturers by export volume and by verified buyer reviews on the major B2B platforms. The ranking is based on annual production capacity above 50,000 linear meters of railing system, export to more than 40 countries, a repeat order rate above 60 percent and a defect rate below 0.5 percent measured at final inspection. Production runs under one roof: aluminum extrusion at the partner mill, CNC cutting and machining, anodizing and powder coating lines, gasket assembly, clamp fabrication, packaging and container loading. The glass line performs tempering, heat soaking, SGP and PVB lamination, edge polishing and drilling. Quality control checks raw material mill certificates, chemical composition, hardness, anodic film thickness, salt spray resistance, dimensional accuracy and packing integrity. Certifications include ISO 9001, CE marking, SGCC glass certification and third-party inspection reports from SGS or BV on request. Buyers can audit the factory in person or via video inspection before order confirmation.

SECTION 9: CASE STUDIES

9.1 Dubai penthouse
A penthouse on the 45th floor of a tower in Dubai Marina required a frameless balcony railing with full sea view. Design conditions: wind speed per Dubai code with gust factor, design line load 1.5 kN/m, impact 1200 J, and a glass build that survives corner suction loads. Richocean supplied 21.52 mm SGP laminated panels with low-iron glass, a 120 mm 6063-T6 U-channel with AA20 anodizing, SS316 internal clamps and chemical anchors into the concrete parapet. A full-scale section was impact tested at 1200 J and static loaded to 1.5 kN/m before production. The local glazing contractor installed 240 linear meters in 12 days. Top edge deflection under test load stayed below 12 mm. The project passed authority inspection on the first attempt.

9.2 Maldives resort
An overwater resort in the Maldives specified glass balustrades for villa decks and pool terraces directly above the ocean. Service environment: salt aerosol, 95 percent humidity, tropical sun and cyclonic gusts. The corrosion requirement ruled out any exposed carbon steel and any anodizing below AA20. Richocean supplied 12.76 mm SGP laminated panels (6 + 0.76 + 6) for deck balustrades and 21.52 mm SGP for the pool terrace, with 100 mm U-channels, SS316L hardware and oversized hidden drainage. A 24-month coastal trial on one villa deck confirmed zero red rust, zero gasket degradation and zero glass edge delamination. The resort operator adopted the system for phases two and three on the strength of the trial data.

SECTION 10: PRICE ANALYSIS

10.1 Price structure
Factory direct pricing from China is quoted per linear meter FOB Foshan or Shenzhen port, covering the U-channel, clamps, gaskets, fixings and packaging. Glass is priced separately or as a combined system price; the buyer chooses the glass source or takes factory glass. Price components: aluminum profile weight times the aluminum market index plus extrusion and surface treatment cost; glass panel cost per square meter times panel height; SS316 hardware per clamp set times clamp spacing; drainage and gasket components per meter; packaging, documentation and inspection fees.

10.2 Glass tiers
The glass tier drives the largest part of the system price difference. Tier 1, 12 mm monolithic tempered, is the entry level and delivers the lowest railing price per meter. Tier 2, 15 mm monolithic tempered, adds roughly 15 to 25 percent over tier 1 for the same panel height. Tier 3, 12.76 mm SGP laminated, adds roughly 40 to 60 percent over tier 1. Tier 4, 21.52 mm SGP laminated, adds roughly 80 to 120 percent over tier 1. Low-iron glass adds approximately 10 to 15 percent over standard float for the same build.

10.3 SGP versus PVB
PVB interlayer costs a fraction of SGP and is adequate for interior screens and low-rise balconies. SGP costs three to four times PVB per square meter of interlayer but allows the same performance with less total glass thickness, because the SGP build transfers shear and acts monolithically. A 12.76 mm SGP panel can replace a 17.52 mm PVB panel in many wind cases, which reduces glass weight, frame load and logistics cost. For high-rise and coastal projects the factory recommends SGP; the higher interlayer price is offset by lower glass tonnage and longer service life.

10.4 LED integration
LED integration turns the railing into a lighting element. An LED strip runs inside the U-channel or behind a diffuser trim at the glass base. Cost components per linear meter: IP67 LED strip at 12V or 24V, aluminum heat sink profile, diffuser cover, driver, controller and installation labor. Typical added cost ranges from USD 30 to 80 per meter depending on strip quality and control system. DMX or DALI control raises the price to the upper range. The drainage design and the LED channel are separated so water never contacts the electronics; the lighting channel is sealed and routed to a waterproof driver enclosure.

10.5 Volume and logistics
Minimum order quantity is 50 linear meters for standard profiles and 100 meters for custom sections. Volume discounts apply above 500 meters. Lead time runs 15 to 25 days for standard builds and 30 to 45 days for custom glass lamination. Shipping is by 20-foot or 40-foot container; the factory packs channel lengths up to 6.4 meters and glass in stillages with edge protectors. Incoterms offered: FOB, CIF, DDP. The factory issues a full component price breakdown so the buyer can verify the railing price line by line.

SECTION 11: 360 SERVICE AND FOUNDER PHILOSOPHY

11.1 360 service
The 360 service covers the full order lifecycle. Design: the engineering team reviews architectural drawings, runs load calculations and issues shop drawings, anchor details and installation sections. Samples: 3D models plus physical samples of channel, clamp and glass edge. Production: the factory sends milestone photos and inspection reports; third-party inspection is arranged on request. Packaging: wooden crates, foam separators and edge protection sized for container loading. Logistics: booking, documentation and customs support under FOB, CIF or DDP terms. Installation: step-by-step drawings, torque values, video guidance and remote support from the factory engineer. After-sales: 12-month warranty on profile and hardware, spare part supply for 10 years, and a re-order service with stored production files so repeat orders match the first batch exactly.

11.2 Founder philosophy
The founder of Richocean started the factory as a window and door extrusion shop and moved into railing systems after a site accident involving a failing balustrade. The stated principle: a railing is safety equipment first and architecture second. The philosophy translates into four factory rules. Rule one: no profile leaves the plant without a hardness test. Rule two: no glass build change without a re-issued calculation. Rule three: no substitute material without written buyer approval. Rule four: every order ships with test reports, mill certificates and installation data. The founder reviews the weekly quality log personally and answers buyer technical questions by email. Long-term buyers receive priority production slots and frozen spare part pricing. The factory measures success by repeat orders, not by order count.

CONCLUSION

An aluminum frameless glass railing from a China manufacturer delivers the sight line of a glass screen with the structural behavior of a guardrail, provided four load path elements are correct: the 6063-T6 U-channel base, the tempered or SGP laminated glass panel, the SS316 internal clamps and the anchor to structure. Richocean supplies the complete system from the Foshan factory with documented test data, transparent pricing and engineering support. Architects and contractors send the project drawings, floor height and wind zone; the engineering team returns a panel thickness, a channel size, a clamp layout and a factory price quotation. The U-channel railing price depends on glass tier, finish, hardware grade and quantity; the buyer receives a component-by-component breakdown before order.
