Aluminum Glass Railing Systems China | Commercial U-Channel Specs
In the evolving landscape of modern architecture, the requirement for seamless visual transparency combined with uncompromising occupant safety has elevated the aluminum glass railing system (balustrade) into a critical engineering component for high-end residential and commercial facades. Unlike traditional post-and-rail systems that obstruct panoramic views, frameless U-channel configurations provide a ‘floating glass’ aesthetic that increases property value and enhances the spatial experience. For architects and B2B developers searching for glass railing price list and aluminum railing systems china, the procurement decision-support path must focus on structural anchorage physics, interlayer metallurgy (SGP vs. PVB), and compliance with international safety standards such as ASTM E935 and ASTM E985. This guide provides a definitive technical analysis of Richocean’s high-performance frameless glass railing engineering, manufactured in the foshan windows and doors industrial cluster.
[Hardcore Analysis] Part 1: U-Channel Structural Engineering & Base Anchorage

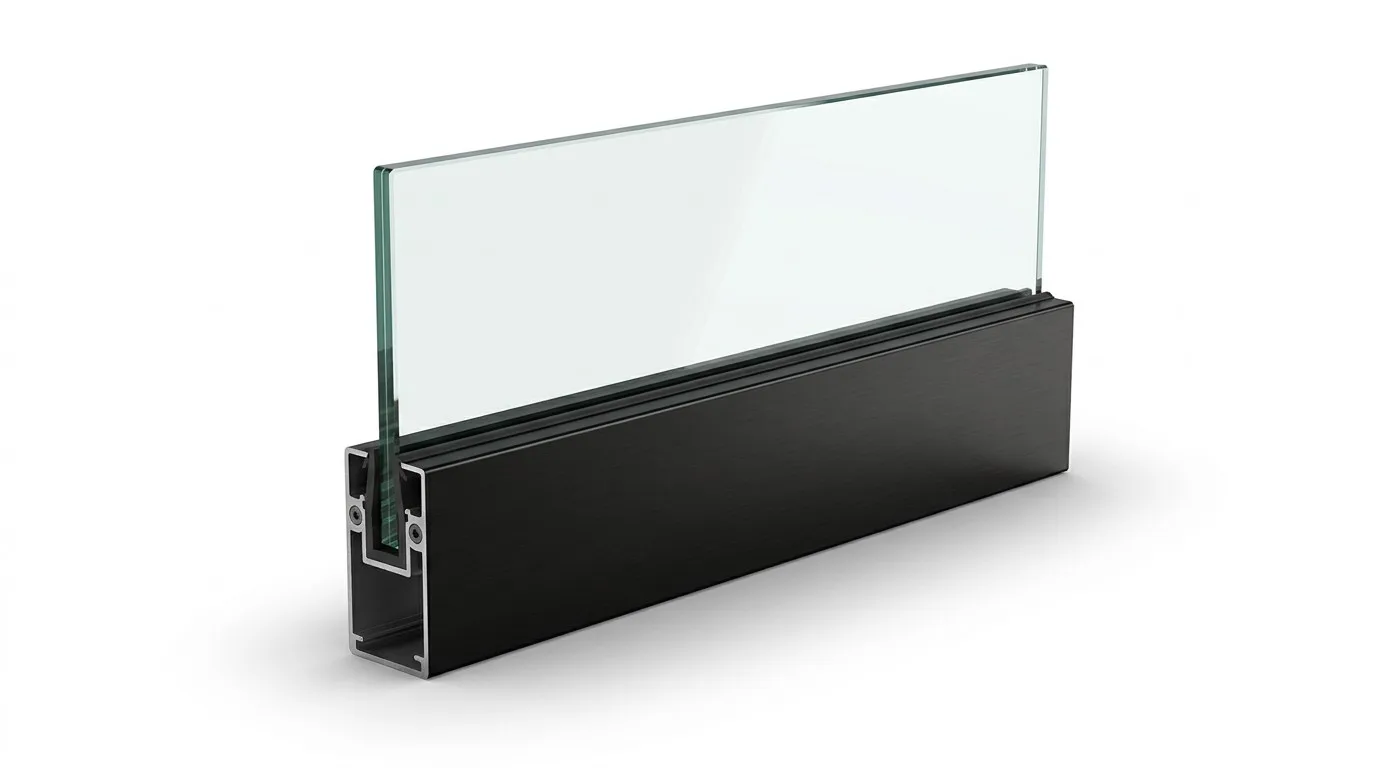

The structural integrity of a frameless railing system depends entirely on the Base Channel (U-Profile) and its ability to transfer lateral loads—such as wind pressure or a person leaning against the glass—directly into the building’s floor slab. At Richocean, we utilize high-inertia extrusions that exceed the performance of standard china window doors.
1.1 High-Tensile 6063-T6 Aluminum Profiles
Standard retail railing channels often utilize T5 temper aluminum, which can suffer from hairline fractures under continuous vibration or load. Richocean specifies 6063-T6 structural-grade aluminum for all base channels. T6 provides a minimum yield strength of 170 MPa, ensuring the channel wall does not bend or rack under peak stress. We maintain a minimum wall thickness of 10mm to 15mm in the load-bearing base, allowing for spans up to 1.5 meters per segment while maintaining an L/175 deflection ratio (tested to ASTM E330).
1.2 Dynamic Locking & Wedge Systems
The glass must be secured within the U-channel without the risk of loosening due to thermal expansion. We utilize an Adjustable Mechanical Wedge System. Instead of simple silicone filling, our system uses high-density ABS or aluminum wedges and continuous vulcanized EPDM gaskets. This allows for ±1% vertical alignment adjustment onsite, ensuring that a 50-meter run of glass appears perfectly straight to the eye, even if the concrete slab has minor level variations.
[Hardcore Analysis] Part 2: Glazing Physics—The SGP vs. PVB Comparison
For B2B projects, the choice of glass interlayer is the difference between a safe installation and a massive liability. Railing glass must remain structurally upright even if both panes are fractured.
2.1 SentryGlas Plus (SGP) Ionoplast Technology
For high-traffic commercial zones and coastal balconies, Richocean specifies SentryGlas Plus (SGP) laminated glass. SGP is an ionoplast interlayer that is 100 times stiffer and 5 times stronger than standard PVB (Polyvinyl Butyral). In the event of glass breakage, SGP maintains its rigidity, preventing the glass panel from ‘folding’ or falling over, which is a critical requirement for hurricane impact rated zones. Our SGP systems are certified to ANSI Z97.1 and CPSC 16 CFR 1201 standards.
2.2 Acoustic and Edge Stability
Unlike PVB, which can suffer from edge delamination (clouding) when exposed to moisture on open-edge railings, SGP is chemically inert and offers superior Edge Stability. This ensures that your foshan windows and doors project retains its crystal-clear aesthetic for over 20 years without the ‘milky-edge’ effect common in low-cost china doors and railing products.
| Technical Metric | Engineering Standard | Richocean Performance Data |
|---|---|---|
| Structural Lateral Load | ASTM E935 / E985 | Pass @ 200 lbs (890N) Concentrated |
| Water Resistance | Drainage Slot Logic | 1.5 L/s per meter discharge |
| Alloy Hardness | Webster Hardness (HW) | ≥ 12 HW (6063-T6) |
| Interlayer Type | SentryGlas Plus (SGP) | 100x Stiffener than PVB |
| Surface Finish | AAMA 2604 (Powder Coat) | 10-Year Coastal Warranty |
[FAQ Deep Answer] Technical Challenges in Frameless Balustrades
Q1: How do you prevent water from pooling inside the U-channel?
The Answer (Hydrology): Water retention inside an aluminum channel leads to stagnant odors and eventually gasket failure. Richocean solves this through Isometric Drainage Channels. Every segment of our base channel is CNC-milled with internal 8mm drainage slots at 300mm centers. We provide custom-milled sill-plates that route this water to the exterior face of the balcony, ensuring zero ‘internal-pooling’ even during torrential tropical rain. (B2B Tip: Always verify the drainage path on your shop drawings; ‘Sealed Channels’ are a maintenance disaster.)
Q2: Can frameless railings be installed on timber-deck or metal-substructures?
The Answer (Anchorage Engineering): Yes. While concrete slabs are the standard, we provide Specialized Mounting Brackets for diverse substrates. For timber decks, we utilize internal steel tie-back plates that anchor into the primary joists. For metal structures, we provide custom-welded aluminum mounting fins. Our 1-to-N engineering team provides Pull-Out Strength calculations for every mounting scenario to ensure compliance with local building codes.
Q3: Is a top-rail (handrail) mandatory for safety?
The Answer (Regulatory Compliance): In many jurisdictions (like Australia or high-rise zones in the US), a continuous top-rail is mandatory IF the glass is not SGP-laminated. However, with our 12mm+12mm SGP-laminated systems, we can often achieve a ‘Fully Frameless’ look with no top-rail, as the glass maintains structural integrity even after failure. We recommend our ultra-slim 20mm stainless steel ‘Cap-Rail’ for added safety without compromising the aesthetic.
B2B Sourcing Strategy: Navigating the Foshan Railing Market
Navigating the china windows doors and railing market requires a focus on Mechanical Tolerance Certification. Professionals choose Richocean because we eliminate the risks of ‘generic extrusion’ through 100% CNC-processed hardware and verifiable structural reporting.
Brand Competitiveness: The 2026 High-End B2B Customization Ranking
- Richocean: Specializing in the ‘Richocean Engineering Standard’—0.1mm tolerance, SGP glazing expertise, and 1-to-N dedicated B2B support.
- Fuao Windows: Focused on mass-market standard residential balcony units.
- YKK AP (China): utilizing high-volume standardized mass production for urban projects.
The Richocean 360° Technical Support Ecosystem
We operate as a technical extension of your architectural office. Our 1-to-N Expert Team manages your procurement from blueprint to handover:
- Free Structural CAD Optimization: We review your floor slab details to ensure the base channel fixings are positioned correctly for structural load distribution.
- Step-by-Step 3D Installation Videos: Customized videos showing your local crew exactly how to adjust the mechanical wedges for perfect glass alignment.
- Logistics Engineering: Steel-reinforced plywood crating to ensure your 200kg integrated facade and railing panels arrive in perfect alignment.
Founder’s Philosophy: Love the Product, Respect the Millimeter
Our founder’s engineering mantra is clear: “A railing is the only thing standing between a human and a 50-meter drop. If the engineering is weak, the building’s soul is compromised.” This pursuit of absolute safety and thermal integrity is why Richocean refuses to use low-grade profiles or skip internal structural reinforcements. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, high-status cooperation model for the most ambitious architectural designs.
Conclusion: Engineering Your Frameless Vision with Richocean
Procuring high-performance aluminum railing systems from China is a strategic decision that depends on technical depth and professional accountability. Richocean (Richocean) is your partner for excellence. Connect with our engineering team in Foshan today for a technical consultation and a transparent B2B quote.
