Aluminum Frameless Glass Railing Manufacturer China Factory Price U-Channel Tempered
1. System Overview — Invisible Protection

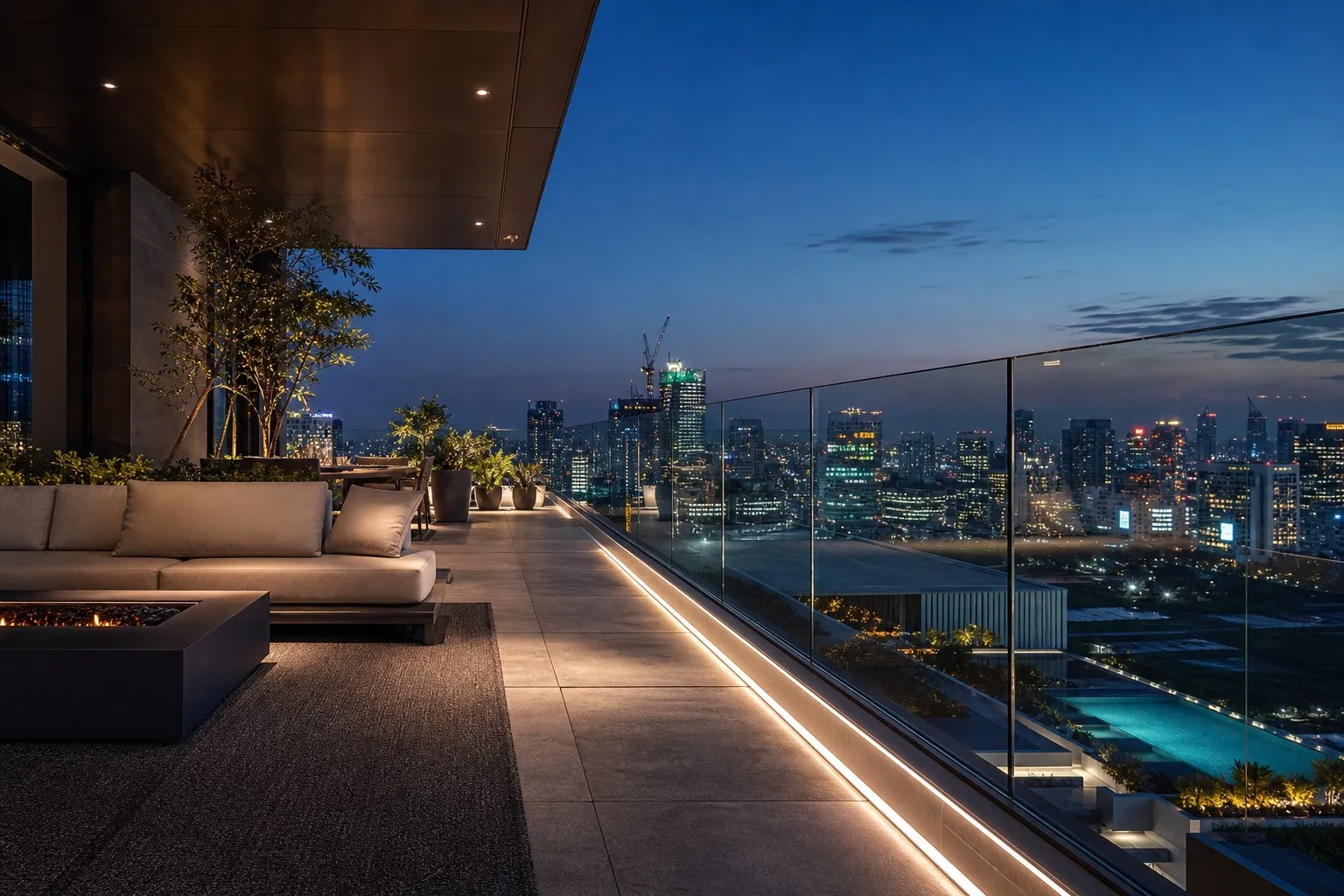

The Aluminum Frameless Glass Railing — also known as the U-channel balustrade — is the definitive safety solution for balconies, terraces, staircases, and rooftop decks. It provides an unobstructed view with a structural boundary: glass panels held in a slim aluminum U-channel base, secured by SS316 clamps. As a premier manufacturer in China, Richocean engineers these systems with 6063-T6 metallurgy, SGP laminated safety glass, and hidden drainage — at factory-direct prices.
2. Core Material Science — 6063-T6 U-Channel
The base channel is the structural foundation of the railing system. Richocean specifies 6063-T6 aluminum alloy for all U-channel extrusions.
The U-channel base profile (60–80mm wide, 100–120mm high) is extruded with internal stiffening ribs and drainage slots. Surface treatment: anodizing 15–25 micron, powder coating 60–80 micron, or PVDF 35–45 micron for coastal environments.
3. Glass Systems — Tempered & Laminated
Glass thickness selection follows building codes for high-rise and residential applications:
| Glass Spec | Application | Key Property |
|---|---|---|
| 12mm Tempered | Standard residential | 620°C tempering, EN 12150 |
| 15mm Tempered | Commercial zones | Higher foot traffic |
| 21.52mm SGP Laminated | High-rise, overhead | 5× PVB tear strength |
4. SS316 Clamps & Hardware
Internal clamping hardware carries the full glass load. Richocean specifies SS316 (CF8M) stainless steel:
- Internal pressure plates: molybdenum content resists chloride pitting
- EPDM gaskets: prevent glass-to-metal contact; -40°C to +120°C elasticity
- Hidden drainage slots: CNC-machined in the base, eliminating water stagnation
5. Load & Impact Engineering
- Lateral force: 1.5 kN/m rated
- Point load: 0.75 kN
- Impact: SGP system sustains 1200J without penetration (pendulum test)
- Wind load: calculated per project location and height
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Lateral Force | BS 6180 | 1.5 kN/m |
| Impact Resistance | EN 12600 | 1200J, SGP no penetration |
| Glass Railing | ASTM E2353 / E935 | Performance tested |
| Coating Salt Spray | ASTM B117 | 4,000h PVDF |
| Hardware | SS316 / 316L / 2205 | Marine grade |
7. Technical FAQ
Q: What glass thickness is required for high-rise installations?
A: Codes typically mandate 21.52mm SGP laminated glass above 10m; the SGP interlayer ensures post-breakage stability.
Q: What is the measurement tolerance for U-channel lengths?
A: Factory cutting tolerance is ±2mm for channels and ±1mm for glass; installers must account for aluminum thermal expansion (23.1 × 10⁻⁶ m/m·K).
Q: How does the system handle coastal corrosion?
A: SS316 internal components plus PVDF or specialized anodizing; regular fresh-water rinsing removes salt deposits and extends service life.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for frameless glass railing export volume. The Foshan factory produces 50,000 meters monthly under ISO 9001:2015, with 6063-T6 extrusion lines and SS316 hardware sourcing integrated in-house. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Penthouse (Illustrative)
21.52mm SGP glass with silver anodized U-channel at 200m elevation; M12 chemical anchors into reinforced concrete met high wind pressure requirements. Illustrative example values.
Example B — Tropical Resort (Illustrative)
15mm tempered glass with PVDF-coated bases on a beachfront; 40-micron coating and SS316 hardware passed 5,000-hour salt spray tests. Illustrative example values.
10. Price Analysis
- Glass thickness tiers: 12mm base; 15mm +15–20%; 17.52mm PVB +40%; 21.52mm SGP +85%
- Interlayer: SGP premium vs PVB, but allows thinner glass for equal strength — offsets freight
- LED integration: integrated channel +$10–15/meter
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, static load calculations, installation video documentation, 10-year aluminum warranty, and 5-year glass lamination warranty. The founder’s philosophy — Precision Engineering for Human Safety — holds that factory-to-site communication eliminates technical errors, and every profile leaving the factory must meet the highest global building-material standards.
12. Conclusion
The Aluminum Frameless Glass Railing provides invisible protection with visible elegance. With 6063-T6 U-channels, SGP laminated glass, SS316 clamps, and C5-M coatings, Richocean delivers this engineering from China at factory-direct prices — the definitive partner for transparent architecture.
