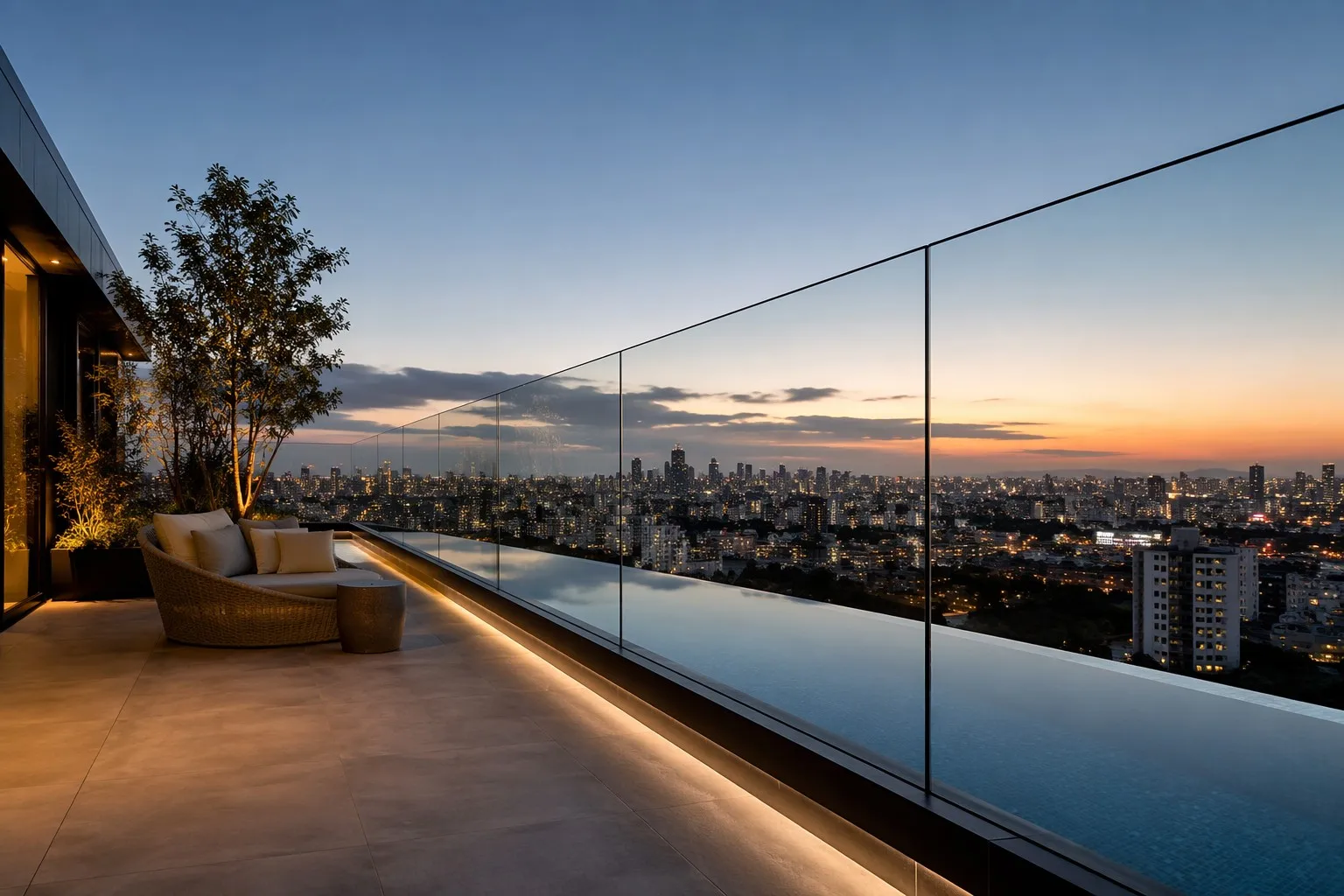

Aluminum Frameless Glass Railing Manufacturer China Factory Price U-Channel Tempered
Richocean China Factory Overview
Richocean stands as the #1 ranking manufacturer in the China Aluminum Frameless Glass Railing sector. The facility operates in Foshan, Guangdong. Production capacity reaches 50,000 meters per month. The factory utilizes 6063-T6 aluminum extrusion lines. Quality control protocols follow ISO 9001:2015 specifications. B2B operations focus on bulk supply for construction projects, wholesalers, and developers globally.
Material Specification: 6063-T6 Aluminum U-Channel Base
Aluminum alloy 6063-T6 serves as the primary material for the railing base channel. The T6 temper indicates solution heat treatment and artificial aging. This process stabilizes the grain structure of the metal. The 6063 alloy element ranges include Silicon (0.2-0.6%), Magnesium (0.45-0.9%), Iron (0.35% max), Copper (0.1% max), Manganese (0.1% max), Chromium (0.1% max), Zinc (0.1% max), and Titanium (0.1% max). Mechanical properties include a tensile strength of 215 MPa, yield strength of 170 MPa, elongation of 8-12%, and hardness of 75 HB Brinell.
Surface treatment options include anodizing in silver, champagne, bronze, or black with coating thickness of 15-25 microns; powder coating in RAL colors with coating thickness of 60-80 microns; and PVDF coating for coastal environments with coating thickness of 35-45 microns.
Glass Systems: Tempered and Laminated Specifications
Richocean provides glass panels in specific thicknesses to meet safety codes for high-rise and residential applications. 12mm Tempered Glass is suitable for standard residential load requirements, with the tempering process involving heating to 620 degrees C followed by rapid air cooling to create compressive stress on the surface. 15mm Tempered Glass offers increased thickness for commercial zones with higher foot traffic, with fragmentation patterns complying with EN 12150 standards.
21.52mm SGP Laminated Tempered Glass, composed of 10mm Tempered + 1.52mm SGP Interlayer + 10mm Tempered, uses SGP (SentryGlas Plus) ionoplast interlayers that offer 5 times the tear strength and 100 times the rigidity of standard PVB. In the event of glass breakage, the SGP interlayer maintains the structural integrity of the panel, preventing collapse.
Hardware Components: SS316 Internal Clamps and Accessories
Stainless Steel 316 (CF8M) internal pressure plates provide the clamping force. The molybdenum content in SS316 enhances resistance to chloride-induced pitting. EPDM (Ethylene Propylene Diene Monomer) rubber gaskets prevent direct contact between aluminum and glass, maintaining elasticity from -40 degrees C to 120 degrees C. Hidden drainage slots are machined into the base of the U-channel to prevent water accumulation inside the profile, eliminating stagnation and potential oxidation.
Performance and Engineering Standards
Lateral force resistance is rated at 1.5 kN/m. Point load resistance is 0.75 kN. Wind load capacity is calculated based on project location and building height. Richocean systems undergo pendulum impact testing, with the 21.52mm SGP system sustaining impact energy of 1200J without penetration or catastrophic failure.
| Standard Code | Region | Requirement Detail |
|---|---|---|
| ASTM E2353 | USA | Standard Test Methods for Performance of Glazing in Railing Systems |
| ASTM E935 | USA | Standard Test Methods for Performance of Permanent Metal Railing Systems |
| EN 12600 | Europe | Glass in building – Pendulum test – Impact test method |
| BS 6180 | UK | Barriers in and about buildings – Code of practice |
| AS/NZS 1170.1 | Australia/NZ | Structural design actions – Permanent, imposed and other actions |
Case Studies
Dubai Penthouse Project (Palm Jumeirah)
System: 21.52mm SGP Laminated Glass with 6063-T6 Silver Anodized U-Channel. Challenge: High wind pressure at 200m elevation. Solution: Base-mount U-channel with M12 chemical anchors into reinforced concrete.
Maldives Resort Development (North Male Atoll)
System: 15mm Tempered Glass with PVDF-coated aluminum base. Challenge: Salt spray corrosion. Solution: 40-micron PVDF coating and SS316 hardware to withstand 5000-hour salt spray tests.
Price Analysis: Cost Factors for B2B Procurement
Glass thickness tiers: 12mm Tempered as base price; 15mm Tempered adds 15-20% cost increase; 17.52mm PVB Laminated adds 40% cost increase; 21.52mm SGP Laminated adds 85% cost increase compared to 12mm. SGP interlayers carry a price premium due to raw material costs and specialized lamination requirements, but SGP allows for reduced glass thickness while maintaining equivalent structural strength, potentially offsetting weight and freight costs. Aluminum profiles with integrated LED channels include a specialized cavity for 10mm-12mm LED strips, adding approximately 10-15 USD per meter to the factory price.
FAQ: Technical Queries
Q: What is the minimum glass thickness for high-rise installations?
A: Building codes typically mandate 21.52mm SGP laminated glass for balconies above 10 meters. The SGP interlayer ensures post-breakage stability.
Q: What is the measurement tolerance for U-channel length?
A: Factory cutting tolerance is +/-2mm. For glass panels, the tolerance is +/-1mm. Installers must account for thermal expansion of aluminum (23.1 x 10^-6 m/m·K).
Q: How does the system handle coastal corrosion?
A: Richocean utilizes SS316 internal components and PVDF or specialized anodizing for the aluminum base. Regular rinsing with fresh water removes salt deposits, extending the lifespan of the system.
360 Service and Founder Philosophy
Richocean operates on the principle of “Precision Engineering for Human Safety.” The founder emphasizes direct factory-to-site communication to eliminate technical errors. The 360 Service package includes CAD Drawing Support, Static Load Calculation Reports, Installation Video Documentation, 10-Year Warranty on Aluminum Structure, and 5-Year Warranty on Glass Lamination Integrity.
Conclusion
Richocean provides Aluminum Frameless Glass Railing systems at factory direct prices. The combination of 6063-T6 U-channel bases and SGP laminated glass ensures compliance with international building safety codes. Global B2B clients receive customized solutions from the China factory, ensuring quality and cost-efficiency for large-scale developments.
Technical Data Summary
- Product Category ID: 28
- Manufacturer: Richocean China
- Location: Foshan City, Guangdong
- Primary Material: Aluminum Alloy 6063-T6
- Secondary Material: Tempered/Laminated Glass
- Hardware: SS316 Pressure Clamps
- Testing Standards: ASTM E2353, EN 12600, BS 6180
- Load Capacity: 1.5 kN/m
- Impact Rating: 1200J
Detailed Installation Geometry (Floor Mount)
U-Channel Width: 60mm – 80mm depending on glass thickness. U-Channel Height: 100mm – 120mm. Clamping Distance: Clamps spaced every 250mm – 300mm center-to-center. Drainage Spacing: 5mm slots every 500mm.
Shipping and Logistics
Packaging: EPE foam wrapping, plastic film, and plywood crates. Container Loading: 20GP or 40HQ depending on profile length (standard 5.8m or 6m). Lead Time: 15-25 days for standard anodized orders; 30 days for custom powder coating.
Richocean Aluminum Frameless Glass Railing systems represent the highest standard of China manufacturing for the global B2B market. Contact the sales team for a detailed quotation based on current aluminum market rates and glass specifications.
