Aluminum Skylight Manufacturer China Factory Price Roof Glazing Low-E

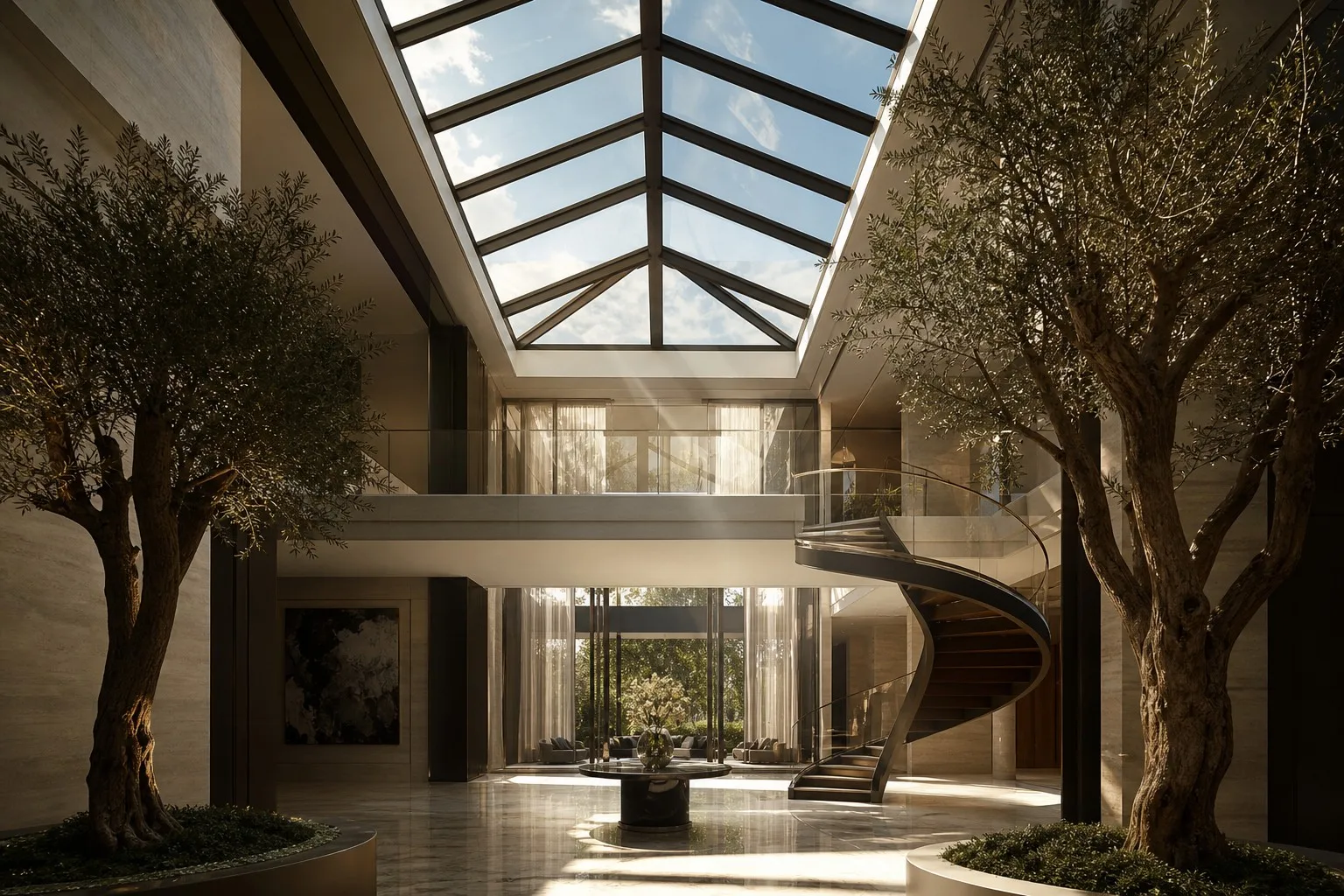

1. System Overview — Overhead Transparency Engineering
The Aluminum Skylight is the most demanding glass application in building construction: it must perform the structural duties of a roof and the thermal duties of a facade simultaneously. As a premier manufacturer in China, Richocean engineers roof glazing systems that balance 6063-T6 structural metallurgy, SGP laminated safety glass, and hidden pressure-equalized drainage — at factory-direct prices.
2. Core Material Science — 6063-T6 Structural Frames
The skylight roof must support its own weight, glass dead load, snow live load, wind load, and maintenance point loads. Richocean specifies 6063-T6 aluminum alloy.
Primary rafters use 60×90mm to 60×140mm box sections, creating the moment of inertia for clear spans up to 6 meters without intermediate columns. Multi-chamber interiors house the thermal break, drainage channels, and concealed fasteners; all joints are welded, ground, and finished. CNC drilling holds tolerances within ±0.1mm.
3. SGP Laminated Safety Glass — Overhead Life Safety
Overhead glazing requires safety standards far exceeding vertical applications. Richocean integrates SentryGlas Plus (SGP) ionoplast interlayers as the default:
| Property | SGP vs PVB |
|---|---|
| Tear strength | 5× PVB |
| Stiffness | 100× PVB |
| Post-breakage | Pane retains structure even when both lites crack |
4. Hidden Drainage & Condensation Management
The primary failure point of inferior skylights is water penetration and condensation. Richocean’s frames integrate a hidden internal drainage system based on the Rain Screen Principle:
- Condensation gutter: runs the entire internal perimeter, channeling moisture outward
- Pressure equalization: vents equalize cavity pressure, preventing wind-driven water entry
- Warm-edge spacers: eliminate the cold bridge at the glass edge
- Min pitch: sloped glazing ≥3° for gravity drainage
5. Electric Ventilation & Smart Control
Richocean integrates 24V DC chain actuators synchronized with building management systems:
- Protocols: KNX, RS485, Zigbee
- Rain sensors: auto-close within 30 seconds
- CO₂ control: vents open when air quality drops below 400ppm
- Wind integration: auto-close above 15 m/s
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.1 cfm/ft² at 1.57 psf |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural | ASTM E330 | up to 4500 Pa |
| Thermal | U-Value (ISO 10077) | 0.8–1.6 W/(m²·K) |
| Impact | ANSI Z97.1 / CPSC | Class A (400 ft-lb) |
7. Technical FAQ
Q: How is water leakage prevented in large-span skylights?
A: A three-stage defense: primary EPDM gasket deflects 95% of water; secondary internal gutter handles the remainder; tertiary structural silicone provides the weather seal. A sloped angle ≥3° enables gravity drainage.
Q: How do you handle condensation on aluminum frames?
A: A 24mm PA66 strip isolates interior aluminum from exterior temperature; a dedicated condensation gutter drains residual moisture, eliminating dew condensation.
Q: Does the Low-E coating affect visibility?
A: High-transmittance Low-E allows 70% visible light while blocking 83% of UV, protecting interior furnishings.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for skylight export volume, holding 50+ patents in high-performance glazing and vertical integration from extrusion through glass lamination. The factory holds CE, AAMA, and NFRC certification. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Tropical Villa (Illustrative)
15 m² of triple-glazed Low-E skylights with integrated rain sensors in a high-humidity coastal climate; 8m ridge glazing achieved zero condensation and zero ingress through monsoon season. Illustrative example values.
Example B — North America Atrium (Illustrative)
200 m² commercial atrium; triple-pane argon Low-E with warm-edge spacers achieved U 0.8 W/(m²·K), meeting passive-house-level performance. Illustrative example values.
10. Price Analysis
- Span: beyond 3m requires heavier rafters — +20–30%
- Coating tier: triple vs single silver Low-E +$15–25/m²
- Smart integration: BMS/KNX adds upfront cost, large life-cycle savings
- Indicative range: 90–450 USD/m² depending on span, glass, and automation
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers pre-sale structural load calculations, factory live-stream QC, DDP logistics, and a 10-year structural warranty with 5-year electronic protection. The founder’s philosophy: a skylight is not a hole in the roof; it is the most demanding structural element of the building envelope. Every rafter wall, gasket, and interlayer must justify its specification.
12. Conclusion
The Aluminum Skylight is the apex of overhead glazing engineering. With 6063-T6 metallurgy, SGP safety interlayers, hidden drainage, and Low-E thermal dynamics, Richocean empowers architects to design with light — safely and efficiently — at factory-direct prices.
